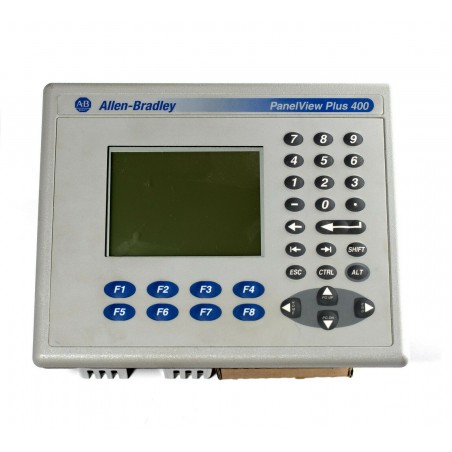

Allen-Bradley 2711P-K4M20D PanelView Plus 400 operator panel with ethernet ser D

Product Details Panel View Plus 400

Graphic operator terminal with 5.5 inch screen, mono FSTN with 32 levels of greyscale
Keypad only, touchscreen only, and keypad and touchscreen input models

Technical Specification Display Type 4inch Mono FSTN 32 level greyscale Format Graphic/Text Background light brightness Software Real time clock Battery backed Memory Options 32M Flash/64M RAM Communication Port RS232 and 1 USB Other Ports Optional Ethernet, DH485 Drivers All major PLC Power Requirements 18 - 30Vdc Power Consumption 25W Programming RSView Studio Operating Temperature 0 - 55°C Humidity 5 – 95% non condensing Ratings IP65, NEMA 12, 13, 4X Certifications CE, cUL, UL listed Cutout Dimensions 123mm x 156mm Bitmaps/Graphic objects Yes Alarms Yes Graphic Animation Yes Trending Yes – max 8 pens Data logging 300000 data points Expressions Logic and maths Security Yes, username and password

Tested, in good condition.
