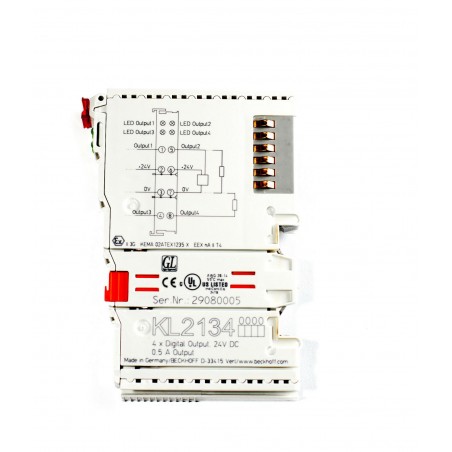

Beckhoff KL2134 4-channel digital output terminal 24 V DC

KL2134 4-channel digital output terminal 24 V DC

The KL2134 digital output terminal connects the binary control signals from the automation unit on to the actuators at the process level with electrical isolation. The KL2134 is protected against reverse polarity connection. The Bus Terminal contains four channels that indicate their signal state by means of light emitting diodes.

Tested, in good condition.

Technical data KL2134 | KS2134 Connection technology 2-/3-wire Number of outputs 4 Rated load voltage 24 V DC (-15 %/+20 %) Load type ohmic, inductive, lamp load Max. output current 0.5 A (short-circuit-proof) per channel Short circuit current < 2 A Breaking energy < 150 mJ/channel Reverse voltage protection yes Electrical isolation 500 V (K-bus/field potential) Current consumption power contacts typ. 30 mA + load Current consumption K-bus typ. 9 mA Bit width in the process image 4 outputs Configuration no address or configuration setting Weight approx. 70 g Operating/storage temperature -25…+60 °C/-40…+85 °C Relative humidity 95 %, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. class/installation pos. IP 20/variable Pluggable wiring for all KSxxxx Bus Terminals Approvals CE, UL, Ex, GL
