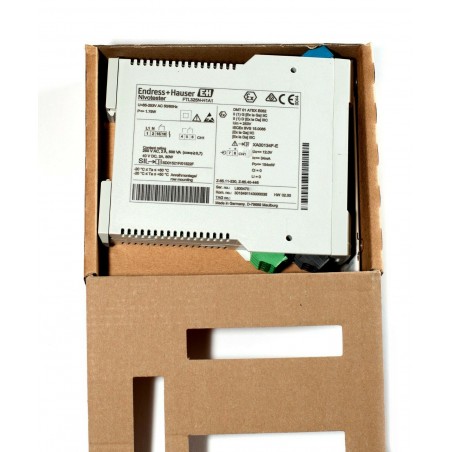

Endress+Hauser Nivotester isolating amplifier with NAMUR input FTL325N-H1A1

Endress+Hauser Nivotester isolating amplifier with NAMUR input FTL325N-H1A1.
Applications • Level limit detection in liquid tanks, also in hazardous explosion areas • For Zone 0 or Zone 20 measuring sensors • Liquid detection in pipes for dry running protection for pumps  • Overspill protection for tanks with combustible or non-combustible liquid harmful to water  • Two-point control and level limit detection with one switching instrument  • Application in safety related systems with requirements for functional safety up to SIL2 in accordance to IEC 61508 / IEC 61511 when using Liquiphant M/S with electronic insert FEL 58 Benefits at a glance  • Intrinsically safe signal circuits [EEx ia] for problem-free use of measuring sensor in explosion hazardous areas  • Functional safety SIL (see also Safety Manual SD 161F) through: – line monitoring through to sensor – corrosion monitoring on tuning fork of Liquiphant M and Liquiphant S (high temperature) measuring sensor  • Compact housing for simple series installation on standard rails in switch cabinet  • Simple wiring using pluggable terminal blocks  • NAMUR interface to EN 50227 (DIN 19234; NAMUR) or IEC 60947-5-6 to connect NAMUR sensors or electronic inserts.
