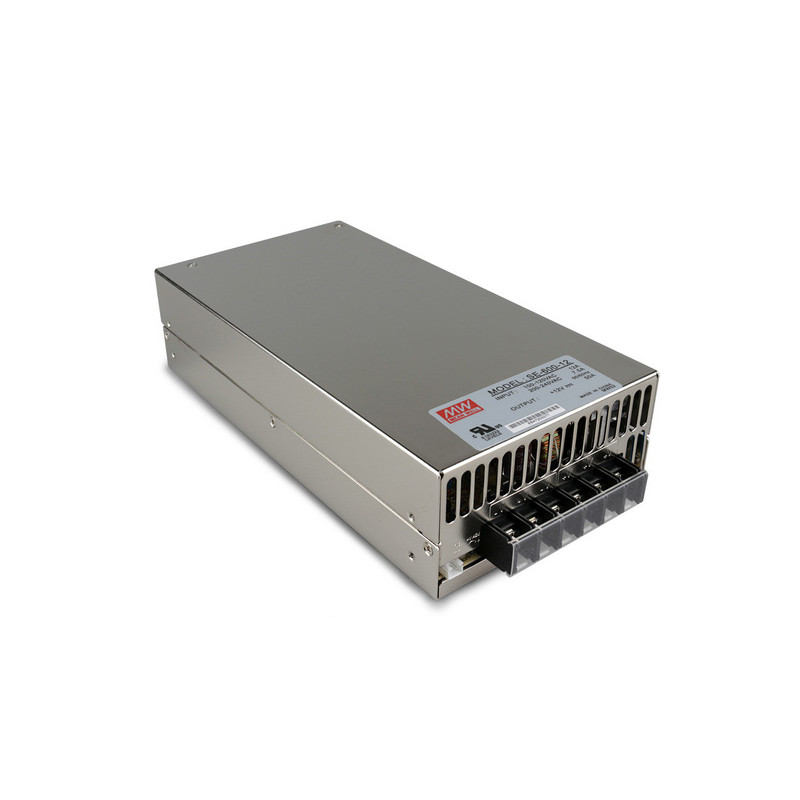

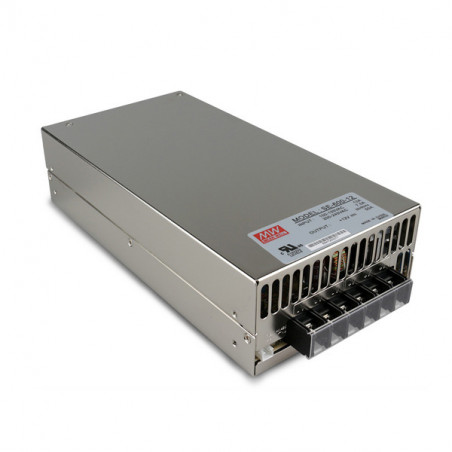

Mean Well SE-600-12 600W 12V 50A AC-DC Enclosed Single Output Power Supply

The MeanWell SE-600-12 is a high-performance, enclosed switching power supply from the trusted SE-600 series. It is engineered to provide a rock-solid 12V DC output with a substantial 50A current, delivering a total power of 600W. Housed in a rugged metal chassis, this AC-to-DC converter is a reliable power solution for a wide array of demanding industrial and commercial applications, from powering large LED displays and industrial equipment to serving as a robust power source for communication systems and machinery.

Key Features and Benefits

• High Power Output: Delivers a robust 600W of continuous power with a 12V DC, 50A output, making it suitable for high-current devices.

• Switch-Selectable Wide AC Input: Features a wide input voltage range of 90-132VAC or 180-264VAC, easily selectable via a switch. This allows the unit to operate on standard 110/115VAC or 220/230VAC mains power worldwide without an external adapter.

• High Efficiency: Operates with a high efficiency of up to 83%, which reduces energy consumption and heat generation. It also boasts a high power density of 4.9 watts per cubic inch, packing significant power into a compact form.

• Comprehensive Protection: Equipped with multiple protection circuits including short circuit, overload (105%-125% of rated output power), over-voltage, and over-temperature protection. These features shut down the power supply in a fault condition, safeguarding both the power supply and your valuable equipment. Recovery is automatic after the fault is cleared.

• Forced Air Cooling: An intelligent built-in DC ball bearing fan provides forced air cooling. It automatically adjusts its speed based on the load and temperature, ensuring stable and reliable operation even under high load or in warm environments.

• Built-in Remote Sense Function: A remote sense function is included to compensate for voltage drops on the output lines, ensuring that the load receives the correct voltage, especially over longer cable runs.

• Active Surge Current Limiting: Protects the unit and connected devices from damaging inrush current during startup.

• Rugged and Compact Design: Encased in a durable metal enclosure (Dimensions: 247 x 127 x 63.5mm or 9.7 x 5.0 x 2.5 inches) designed for chassis mounting. The operating temperature range is -20°C to +60°C with appropriate derating.

• UL Approval and 2-Year Warranty: The SE-600-12 is UL approved, confirming its compliance with stringent safety standards, and is backed by a standard 2-year manufacturer’s warranty.

Technical Specifications

Applications

The Mean Well SE-600-12 is an ideal power source for a broad range of applications requiring a high-current 12V DC supply:

• Industrial Automation: Powering programmable logic controllers (PLCs), motor drives, and sensors in manufacturing and process control systems.

• LED Signage and Displays: Providing stable power for large outdoor LED video walls, advertising signs, and stadium displays.

• Telecommunications: Used as a reliable DC power source for networking equipment, base stations, and communication systems.

• Test and Measurement Equipment: Supplying power to laboratory instruments, data acquisition systems, and automated test equipment (ATE).

• Audio Amplifiers: Capable of powering high-power 12V DC audio amplifier projects.

• General Industrial Machinery: Powering various types of industrial machinery, including laser cutters, CNC routers, and 3D printers.

Important Notes

• Active Product: The Mean Well SE-600-12 is an active product in the manufacturer's lineup and remains in active production and sale.

• Installation and Safety: The power supply is designed for chassis mounting. Installation and electrical connections must be performed by qualified personnel in accordance with local electrical codes and safety regulations. Ensure adequate ventilation around the unit for proper cooling. Disconnect from mains power before servicing. Do not exceed the maximum load.

• Agency Approvals: The SE-600-12 carries UL, CUL, CE, and EAC approvals, confirming its compliance with key international safety standards.

• Cooling: The internal fan activates based on the load and temperature to ensure reliable operation. When mounting the unit, ensure sufficient space for unobstructed airflow.

• Warranty: Mean Well offers a standard 2-year warranty on this product, demonstrating confidence in its reliability.
