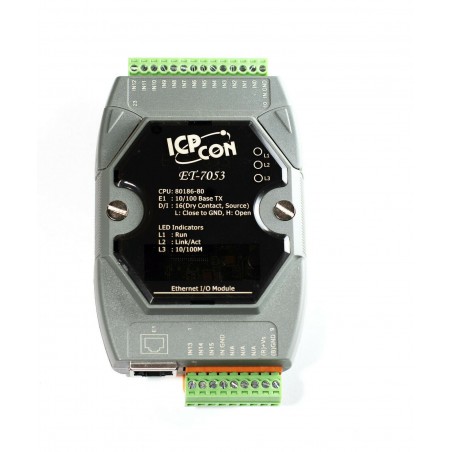

ICP DAS ICP CON 16 dry contact digital input MODBUS TCP slave web server ET-7053

ICP DAS ET-7053 Ethernet I/O Module with 16-ch DI.

Tested, in good condition.

Features:

• Built-in Web Server
• Web HMI Support for both Modbus TCP and Modbus UDP Protocols
• Communication Security
• Dual Watchdog
• Wide Operating Temperature Range: -25 ~ +75°C
• I/O Pair Connection
• Built-in I/O
• DI/Counter: 16 Channels

The ET-7053 provides 16 dry contact digital input channels. Each input channel can be used as a 32-bit counter. It features optical isolation for 3750 Vrms of transient overvoltage protection but doesn’t provide channel-to-channel isolation. It can safely be used in applications where hazardous voltages are present.

Applications:

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

Models ET-7053 PET-7053 ET-7253 PET-7253 Software Built-In Web Server Yes Web HMI Yes I/O Pair Connection Yes Communication Ethernet Port 1 x RJ-45, 10/100 Base-TX 2 x RJ-45, 10/100 Base-TX, Swtich Ports PoE - Yes - Yes Protocol Modbus/TCP, Modbus/UDP Security ID, Password and IP Filter Dual Watchdog Yes, Module (0.8 second), Communication (Programmable) LED Indicators for System Running Yes for Ethernet Link/Act Yes for DI/DO status - Yes for PoE Power - Yes - Yes 2-Way Isolation Ethernet 1500 VDC - 1500 VDC - I/O 2500 VDC EMS Protection ESD (IEC 61000-4-2) 4 kV Contact for Each Terminal and 8 kV Air for Random Point EFT (IEC 61000-4-4) +/-4 kV for Power Power Requirements Reverse Polarity Protection Yes Powered from Terminal Block 10 ~ 30 VDC 12 ~ 48 VDC 12 ~ 48 VDC 12 ~ 48 VDC Powered from PoE - Yes, IEEE 802.3af, Class1 - Yes, IEEE 802.3af, Class1 Consumption 2.7 W (Max.) 2.8 W (Max.) 3.7 W (Max.) 4.1 W (Max.) Mechanical Dimensions (W x L x H) 72 mm x 123 mm x 35 mm 76 mm x 120 mm x 38 mm Installation DIN-Rail or Wall mounting Environmental Operating Temperature -25 ~ +75°C Storage Temperature -30 ~ +80°C Humidity 10 ~ 90% RH, Non-condensing



Models ET-7053 PET-7053 ET-7253 PET-7253 Digital Input/Counter Channels 16 Contact Dry Contact Sink/Source (NPN/PNP) Source On Voltage Level Close to GND Off Voltage Level Open Counters Max. Count 4,294,967,285 (32 bits) Max. Input Frequency 500 Hz 100 Hz Min. Pulse Width 1 ms 5 ms Overvoltage Protection - Effective Distance 500 M Max.
