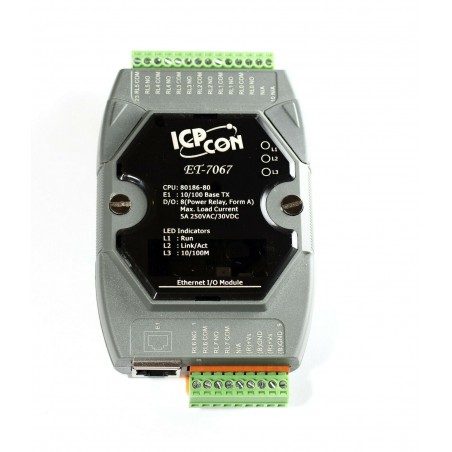

ICP CON Ethernet Module with 8-ch Relay MODBUS TCP IP slave web server ET-7067

ET-7067 Ethernet I/O Module with 8-ch Relay.

Tested, in good condition.

Features:

• Built-in Web Server
• Web HMI
• Support for both Modbus TCP and Modbus UDP Protocols
• Communication Security
• Dual Watchdog
• Wide Operating Temperature Range: -25 ~ +75°C
• I/O Pair Connection
• Built-in I/O Power Relay: 8 Channels

The ET-7067/PET-7067/ET-7267/PET-7267 provides 8 form A electromechanical relays. It features optical isolation for 3000 VDC of transient overvoltage protection and doesn’t have channel-to-channel isolation. The power-on value and safe value of relay are programmable. It can safely be used in applications where hazardous voltages are present.

Applications:

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

Models ET-7067 PET-7067 ET-7267 PET-7267 Software Built-In Web Server Yes Web HMI Yes I/O Pair Connection Yes Communication Ethernet Port 1 x RJ-45, 10/100 Base-TX 2 x RJ-45, 10/100 Base-TX, Swtich Ports PoE - Yes - Yes Protocol Modbus/TCP, Modbus/UDP Security ID, Password and IP Filter Dual Watchdog Yes, Module (0.8 second), Communication (Programmable) LED Indicators for System Running Yes for Ethernet Link/Act Yes for DI/DO status - Yes for PoE Power - Yes - Yes 2-Way Isolation Ethernet 1500 VDC - 1500 VDC - I/O 3000 VDC EMS Protection ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal and ±8 kV Air for Random Point EFT (IEC 61000-4-4) ±2 kV for Power Line ±4 kV for Power Line Surge (IEC 61000-4-5) ±0.5 kV for Power Line ±2 kV for Power Line Power Requirements Reverse Polarity Protection Yes Powered from Terminal Block 10 ~ 30 VDC 12 ~ 48 VDC 12 ~ 48 VDC 12 ~ 48 VDC Powered from PoE - Yes, IEEE 802.3af, Class1 - Yes, IEEE 802.3af, Class1 Consumption 3.4 W (Max.) 3.3 W (Max.) 3.9 W (Max.) 4.1 W (Max.) Mechanical Dimensions (W x L x H) 72 mm x 123 mm x 35 mm 76 mm x 120 mm x 38 mm Installation DIN-Rail or Wall mounting Environmental Operating Temperature -25 ~ +75°C Storage Temperature -30 ~ +80°C Humidity 10 ~ 90% RH, Non-condensing

Power Relay Channels 8 Type Power Relay, Form A (SPST N.O.) Contact Rating 5 A @ 250 VAC/24 VDC (Resistive Load) Min. Contact Load 10 mA @ 5 V Operate Time 10 ms (max.) Release Time 5 ms (max.) Mechanical Endurance 2 × 107 ops. Electrical Endurance 105 ops. Power-on Value Yes, Programmable Safe Value Yes, Programmable
