ICP DAS ICP CON I-7060D 4 Isolated Digital Input 4 Relay Output RS-485 MODBUS

$99.00
264560692168
Quantity
Last items in stock



We provide 6-month warranty for all used products. Before shipping all products carefully tested and packed in hard box with bubble wrap. If you pay with PayPal you can use buyer protection program.



For shipping we use EMS express post (delivery within 5-20 days). By additional request we can use DHL, UPS or FEDex services. In this case price for shipping will be calculated individually.



We accept returns within 15 days after receiving goods.

ICP DAS ICP CON I-7060D 4-channel Isolated Digital Input and 4-channel Relay Output Module.

  • I-7060(D)/M-7060(D)
    • 2 Form A and 2 Form C Signal Relay Output
    • ±2 kV EFT protection for Power Line
  • M-7060P(D)
    • 2 Form A and 2 Form C Power Relay Output
    • ±4 kV EFT protection for Power Line
    • ±3 kV Surge protection for Power Line
  • Sink- and Source-type for Digital Input
  • Digital Input Channels can be used as 16-bit Counters
  • Configurable Power-on Value Settings
  • Configurable Safe Value Settings
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 ~ +75°C

The 7060 series provides 4 digital input channels, 2 Form A and 2 Form C signal relay output channels, while the M-7060P provides 4 digital input channels, 2 Form A and 2 Form C power relay output channels. All digital input channels can be used as 16-bit counters. In addition, the digital input channels can be selected either as sink- or source-type via wire connections. The “D” versions of the 7060 series provide eight LED indicators that can be used to monitor the status of the digital input and relay output. The “M” versions of the 7060 series support both the Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance noise protection capabilities in industrial environments. The 7060 series is the ideal solution for small signal switching applications, while the M-7060P is the perfect solution for high power applications.

  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote Diagnosis
  • Testing Equipment

Model I-7060 M-7060 M-7060P I-7060D M-7060D M-7060PD Relay Output Channels 4 (Form A × 2, Form C × 2) Relay Type Signal Relay Power Relay Form A Relay Contact Rating 0.6 A @ 125 VAC
2 A @ 30 VDC 16A @ 250 VAC
10 A @ 30 VDC Min. Contact Load 10 uA @ 10 mV 100 mA @ 6 V Contact Material Gold-plated silver Silver Tin Alloy Operate Time 3 ms 10 ms Release Time 2 ms 5 ms Mechanical Endurance 1 x 108 ops. 1 x 107 ops. Electrical Endurance 5 × 105 ops. 1 × 105 ops. Form C Relay Contact Rating 0.6 A @ 125 VAC
2 A @ 30 VDC NO:10 A @ 250 VAC
NC:6 A @ 250 VAC Min. Contact Load 10 uA @ 10 mV 100 mA @ 6V Contact Material Gold-plated silver Silver Tin Alloy Operate Time 3 ms 10 ms Release Time 2 ms 5 ms Mechanical Endurance 1 x 108 ops. 1 x 107 ops. Electrical Endurance 5 × 105 ops. 1 × 105 ops. Surge Strength 1500 VDC 2500 VDC Power-on Value Yes Safe Value Yes Digital Input/Counter Channels 4 Type Dry Contact - Wet Contact Sink/Source On Voltage Level +1 VDC Max. +4 VDC Max. Off Voltage Level +4 ~ 30 VDC +10 ~50 VDC Counters Max. Count 65535 (16-bit) Max. Input Frequency 100 Hz Min. Pulse Widt 5 ms Input Impedance 3 kΩ 10 kΩ Overvoltage Protection ±35 VDC ±70 VDC

Communication Interface RS-485 Modbus RTU, DCON Format (N, 8, 1), (N, 8, 2), (E, 8, 1), (O, 8, 1) Baud Rate 1200 ~ 115200 bps Protocol DCON Modbus RTU, DCON Dual Watchdog Yes, Module (1.6 Seconds), Communication (Programmable) LED Indicators/Display System LED Indicator Yes, 1 LED as Power/Communication Indicator I/O LED Indicators - Yes, 8 LEDs as Digital Input/Relay Output Indicators 7-Segment LED Display - Isolation Intra-Module Isolation, Field-to-Logic 3750 VDC EMS Protection ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal ±8 kV Air for Random Point EFT (IEC 61000-4-4) ±2 kV for Power Line ±4 kV for Power Line Surge (IEC 61000-4-5) - ±3 kV for Power Line Power Reverse Polarity Protection Yes Input Range 10 ~ 30 VDC Consumption 1 W 1 W 1.4 W 1.4 W 1.4 W 1.8 W Mechanical Dimensions (W x L x H) 72 mm x 123 mm x 35 mm Installation DIN-Rail or Wall Mounting Environment Operating Temperature -25 ~ +75°C Storage Temperature -40 ~ +85°C Humidity 10 ~ 95% RH, Non-condensing

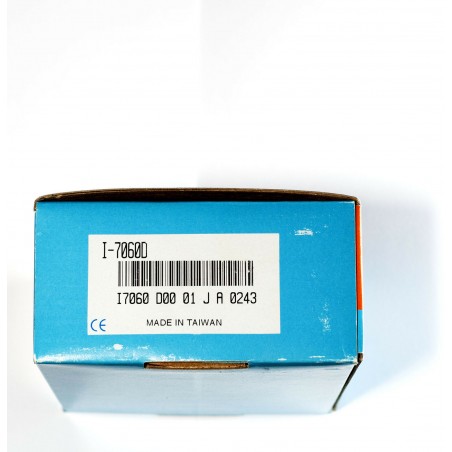

New, in opened package.


Typical delivery time:

  Economy shipping (Russian Post) Standard Shipping (EMS Express Post) Europe 14-30 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days United States 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Canada 14-30 days, in rare cases up to 60 days 7-30 days, in rare cases up to 60 days Asia, India, Africa 14-40 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days Australia and Oceania 14-40 days, in rare cases up to 60 days 10-25 days, in rare cases up to 60 days South and Central America 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Other countries 20-60 days, in rare cases up to 80 days 10-30 days, in rare cases up to 70 days
1 Item

Data sheet

Brand
ICP DAS
MPN
I-7060D
Model
4 Isolated Digital Input 4 Relay Output
Controller Platform
ICP CON
