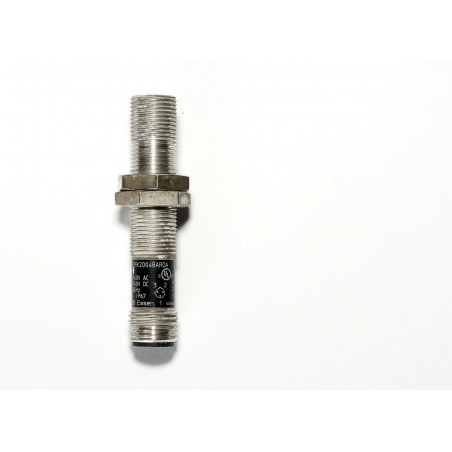

IFM IF0311 IFK2004BAROA Inductive proximity sensor
$0.99
254389903796
We provide 6-month warranty for all used products. Before shipping all products carefully tested and packed in hard box with bubble wrap. If you pay with PayPal you can use buyer protection program.
For shipping we use EMS express post (delivery within 5-20 days). By additional request we can use DHL, UPS or FEDex services. In this case price for shipping will be calculated individually.
We accept returns within 15 days after receiving goods.
Product characteristics
Inductive sensor
Metal thread M12 x 1
Quick disconnect
Increased sensing range
Sensing range 4 mm; [f] flush mountable
Electrical data
Electrical design
AC/DC
Operating voltage [V]
20...140 AC / 10...140 DC (47...63 Hz AC)
Protection class
I
Reverse polarity protection
no
Outputs
Output function
normally open
Voltage drop [V]
< 5
Minimum load current [mA]
5
Leakage current [mA]
< 0.8
Current rating
- Current rating (continuous) [mA]
200
- Current rating (peak) [mA]
0.9 A (20 ms / 0.5 Hz)
Short-circuit proof
no
Overload protection
no
Switching frequency [Hz]
25 AC / 200 DC
Monitoring range
Sensing range [mm]
4
Operating distance [mm]
0...3.25
Accuracy / deviations
Correction factors
mild steel = 1 / stainless steel approx. 0.7 / brass approx. 0.4 / aluminium approx. 0.3 / copper approx. 0.2
Hysteresis [% of Sr]
3...15
Environment
Ambient temperature [°C]
-25...70
Protection
IP 67
Tests / approvals
EMC
EN 60947-5-2
EN 55011:
class B
MTTF [Years]
1271
Mechanical data
Mounting
flush mountable
Housing materials
brass white bronze coated; PBT
Weight [kg]
0.03
Displays / operating elements
Output status indication LED
red
Electrical connection
Connection
1/2" connector
Tested, in good condition.
Typical delivery time:
Economy shipping (Russian Post) Standard Shipping (EMS Express Post) Europe 14-30 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days United States 20-40 days, in rare cases up to 70 days 14-30 days, in rare cases up to 60 days Canada 14-30 days, in rare cases up to 60 days 7-30 days, in rare cases up to 60 days Asia, India, Africa 14-40 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days Australia and Oceania 14-40 days, in rare cases up to 60 days 10-25 days, in rare cases up to 60 days South and Central America 20-40 days, in rare cases up to 70 days 14-30 days, in rare cases up to 60 days Other countries 20-60 days, in rare cases up to 80 days 10-30 days, in rare cases up to 70 days
3 Items
Data sheet
- Brand
- IFM
- MPN
- IF0311 IFK2004BAROA
- UPC
- Does not apply
- Body Type
- Barrel
254389903796
