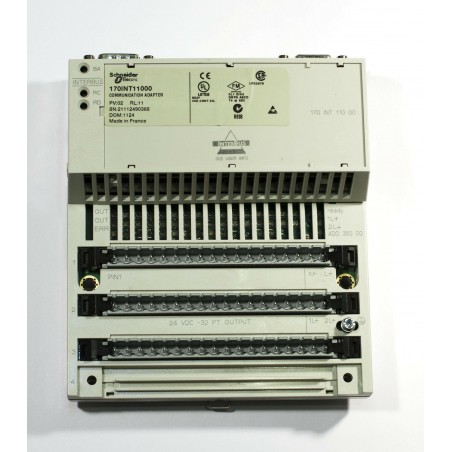

Schneider Electric Momentum 170AAI03000 8 AI U,I with 170INT11000 interbus

170AAI03000 distributed analog input Modicon Momentum - 8 Input

Main range of product Modicon Momentum automation platform product or component type Analogue input base analogue input number 8 analogue input type Differential analogue input range +/- 10 V 14 bits + sign > 0.1 kOhm
+/- 20 mA 14 bits + sign 250 kOhm
+/- 5 V 14 bits + sign > 0.1 kOhm
1...5 V 15 bits + sign > 0.1 kOhm
4...20 mA 15 bits + sign 250 kOhm Complementary data format Full 16 bits signed absolute accuracy error +/- 0.13 % full scale 25 °C 1...5 V
+/- 0.19 % full scale 60 °C 1...5 V
+/- 0.21 % full scale 25 °C +/- 5 V
+/- 0.26 % full scale 60 °C +/- 5 V
+/- 0.27 % full scale 25 °C +/- 10 V
+/- 0.27 % full scale 25 °C 4...20 mA
+/- 0.32 % full scale 25 °C +/- 20 mA
+/- 0.32 % full scale 60 °C +/- 10 V
+/- 0.38 % full scale 60 °C 4...20 mA
+/- 0.41 % full scale 60 °C +/- 20 mA conversion time 80 dB between channels to ground external power requirement < 382 mA DC
20.4...28.8 V DC
24 V DC reverse polarity protection Internal marking CE local signalling 1 LED green ready
8 LEDs channel status electrical connection 2 connectors for removable terminal blocks depth 47.5 mm height 125 mm width 141.5 mm product weight 0.215 kg

Modicon Momentum - 170INT11000
- Interbus communication adaptor - twisted pair Main range of product Modicon Momentum automation platform product or component type Interbus communication adaptor communication port protocol Interbus generation SUPI 2 method of access Continuous shift register
Master/slave transmission rate 500 kbit/s transmission support medium Twisted pair Complementary topology Ring number of devices per segment 0...254 cable distance between devices 12800 m
400 m between two modules fail state Fail safe control parameter CRC-16 supply From I/O base marking CE local signalling 1 LED green bus enable (BA)
1 LED green remote bus check (RC)
1 LED green remote bus disabled (RD) electrical connection 2 connectors SUB-D 9 for connecting Interbus module format Standard product weight 0.07 kg

Tested, in good condition.
