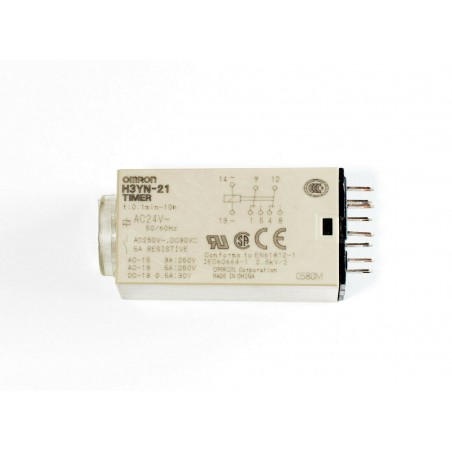

Omron timer 200 to 230 VAC, Output Time-limit: DPDT, ON delay/Interval/F H3YN-21
We provide 6-month warranty for all used products. Before shipping all products carefully tested and packed in hard box with bubble wrap. If you pay with PayPal you can use buyer protection program.
For shipping we use EMS express post (delivery within 5-20 days). By additional request we can use DHL, UPS or FEDex services. In this case price for shipping will be calculated individually.
We accept returns within 15 days after receiving goods.
200 to 230 VAC, Output Time-limit: DPDT, ON delay/Interval/Flicker OFF start/Flicker ON start/Pulse Operation , Time range: 0.1 min to 10 h (4 range), 8-pin.
Rated supply voltage
200 to 230VAC 50/60 Hz
Operating voltage range
85 to 110% of rated operating voltage
Power consumption ( Relay ON )
Approx. 2.2VA 1.8 (at 230 VAC, 60 Hz)
Power consumption ( Relay OFF )
Approx.1.5VA 1.1 (at 230 VAC, 60 Hz)
Reset voltage
10% max. of rated supply voltage
Number of time ranges
4
Time ranges
0.1min~1min / 1min~10min / 0.1h~1h / 1h~10h
Operating mode
ON delay, Interval, Flicker OFF start, Flicker ON start, Pulse Operation (use in interval mode, connect power supply terminals as pulse operation)
Control output (Type)
Time-limit: DPDT
Control output (Contact output)
Switching capacities (Resistive load (cosφ = 1)): 250VAC 5A
Minimum applicable load: 1 mA at 5 VDC (failure level: P)
Ambient temperature
Operating: -10 to 50℃
Storage: -25 to 65℃
Ambient humidity
使用時: 35~85%
Accuracy of operating time
±1% max.(FS)
Setting error
-10 to 10% ±50 ms max. (FS)
Reset time
0.1 s max. (including halfway reset)
Influence of voltage
±2% FS max.
Influence of temperature
±2% FS max.
Insulation resistance
100 MΩ (at 500 VDC)
Dielectric strength
Between current carrying terminals and exposed non-current carrying metal parts: 2,000 VAC 50/60 Hz for 1 min (Terminal screw sections are not excluded)
Between control output terminals and operating circuit: 2,000 VAC 50/60 Hz for 1 min
Between contacts of different polarity: 2,000 VAC 50/60 Hz for 1 min
Between non-continuous contacts: 1000 VAC 50/60 Hz for 1 min
Impulse withstand voltage
Between power terminals: 3 kV
Between current carrying terminals and exposed non-current carrying metal parts: 4.5 kV
Noise immunity
±1.5 kV square-wave noise by noise simulator (pulse width: 100 ns/1 us, 1-ns rise)
Static immunity
Mulfunction: 4 kV, Destruction: 8 kV
Vibration resistance (Destruction)
10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 1 hour
Vibration resistance (Malfunction)
10 to 55 Hz, 0.5-mm single amplitude each in 3 directions for 10 min
Shock resistance (Destruction)
1,000 m/s**2, 3 times each in 6 directions
Shock resistance (Malfunction)
100 m/s**2, 3 times each in 6 directions
Mechanical life expectancy (relayoutput)
10 million operations min. (under no load at 1,800 operations/h)
Electrical life expectancy (relay output)
500,000 operations min. (5 A at 250 VAC, resistive load at 1,800 operations/h)
Degree of protection
IP40
External connection method
8-pin round socket
Case color
Beige
Weight (Main)
Approx. 50 g
Typical delivery time:
Economy shipping (Russian Post) Standard Shipping (EMS Express Post) Europe 14-30 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days United States 20-40 days, in rare cases up to 70 days 14-30 days, in rare cases up to 60 days Canada 14-30 days, in rare cases up to 60 days 7-30 days, in rare cases up to 60 days Asia, India, Africa 14-40 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days Australia and Oceania 14-40 days, in rare cases up to 60 days 10-25 days, in rare cases up to 60 days South and Central America 20-40 days, in rare cases up to 70 days 14-30 days, in rare cases up to 60 days Other countries 20-60 days, in rare cases up to 80 days 10-30 days, in rare cases up to 70 daysData sheet
- Brand
- Omron
- MPN
- H3YN-21
- UPC
- Does not apply
