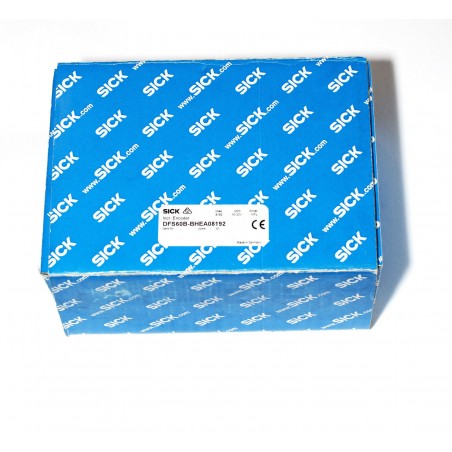

NEW Sick DFS60B-BHEA08192 1056931 incrementa HTL encoder 8192 pulses per rev.

• PERFORMANCE Pulses per revolution 8,192 Measuring step 90° electronically/ppr Measuring step deviation at binary number of lines ± 0.008° Error limits ± 0.05° Initialization time 40 ms

• ELECTRICAL DATA Electrical interface 10 V ... 32 V, HTL/Push pull Connection type Male connector, M23, 12-pin, radial Power consumption ≤ 0.5 W (without load) Load current ≤ 30 mA Output frequency ≤ 600 kHz Reference signal, number 1 Reference signal, position 90°, electric, logically gated with A and B Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ 1) MTTFd: mean time to dangerous failure 300 years (EN ISO 13849-1) 2)
  • 1) Short-circuit opposite to another channel, US or GND permissable for maximum 30 s.
  • 2) This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no. 8015532.

• MECHANICAL DATA Mechanical feature Blind hollow shaft Shaft diameter 15 mm Weight 0.2 kg Shaft material Metal Flange material Aluminum Housing material Aluminum die cast Start up torque 0.8 Ncm (+20 °C) Operating torque 0.6 Ncm (+20 °C) Permissible shaft movement, axial static/dynamic ± 0.5 mm / ± 0.2 mm Permissible shaft movement, radial static/dynamic ± 0.3 mm / ± 0.1 mm Operating speed ≤ 6,000 min⁻¹ 1) Moment of inertia of the rotor 40 gcm² Bearing lifetime 3.6 x 10^10 revolutions Angular acceleration ≤ 500,000 rad/s²
  • 1) Take into account self-heating of 3.3 K per 1,000 rpm when designing the operating temperature range.

• AMBIENT DATA EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating

  IP67, housing side, connector outlet (according to IEC 60529) 1)

  IP65, shaft side (according to IEC 60529)

  Permissible relative humidity 90 % (condensation of the optical scanning not permitted) Operating temperature range

  –40 °C ... +100 °C 2)

  –30 °C ... +100 °C 3)

  Storage temperature range –40 °C ... +100 °C, without package Resistance to shocks 70 g, 6 ms (according to EN 60068-2-27) Resistance to vibration 30 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
  • 1) With mating connector fitted.
  • 2) Stationary position of the cable.
  • 3) Flexible position of the cable.
• New, in opened box.
