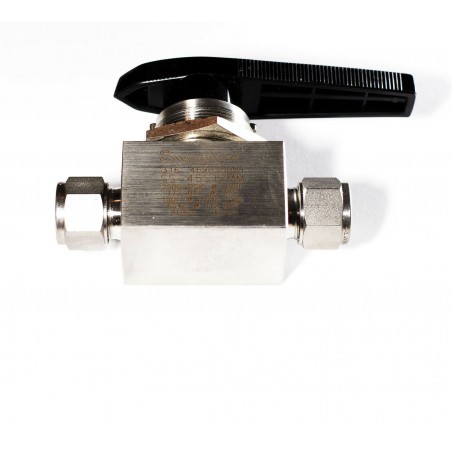

Swagelok Stainless Steel 40 Series Ball Valve 12 Cv 12 mm fitting SS-45S12MM

Stainless Steel 1-Piece 40 Series Ball Valve, 12 Cv, 12 mm Swagelok Tube Fitting

Part No. SS-45S12MM

New, without factory box.

Body Material 316 Stainless Steel Connection 1 Size 12 mm Connection 1 Type Swagelok® Tube Fitting Cleaning Process Standard Cleaning and Packaging (SC-10) Connection 2 Size 12 mm Connection 2 Type Swagelok® Tube Fitting Max Temperature with Pressure Rating 150 F 2500 PSIG /65 C 172 BAR UNSPSC (SWG01) 40141607 Actuator Type Manual Ball/Stem Material Stainless Steel Flow Pattern 2-Way, Shutoff, Straight Handle Color Black Handle Style Lever Lubricant DOW 111 and WL8 Mix O-Ring PTFE Orifice 0.406 in /10.3 mm Ring/Disc Material PTFE-Coated Stainless Steel Room Temperature Pressure Rating 2500 PSIG @ 100°F /172 BAR @ 37°C Service Class General Testing Testing according to WS-22 eClass (4.1) 37010401 eClass (5.1.4) 37010401 eClass (6.0) 37010401 eClass (6.1) 37010401 UNSPSC (10.0) 40141607 UNSPSC (11.0501) 40141607 UNSPSC (13.0601) 40141607 UNSPSC (15.1) 40141607 UNSPSC (17.1001) 40141600 UNSPSC (4.03) 40141607 UNSPSC (PGE) 401416AL
