NEW Wago 750-401 2-channel digital input 24 VDC 0.2 ms

Description 2-channel digital input; 24 VDC; 0.2 ms  Remarks Item description:

This digital input module receives control signals from digital field devices (e.g., sensors).

Each input module has a noise-rejection filter.

Field and system levels are electrically isolated.

    Item properties

Miscellaneous

Name Value Unit Packaging type  BOX    Number of digital inputs  2    Total number of channels (module)  2    Type of signal  Voltage    Type of signal voltage  DC 24 V    Sensor supply voltage  24 V DC    Sensor connection  2 x (2-conductor, 3-conductor, 4-conductor)    Input characteristic  high-side switching    Input filter (digital) [ms]  0.2  ms  Input current per channel for signal (1) typ. [mA]  4.5  mA  Voltage range for signal (0)  −3 … +5 VDC    Voltage range for signal (1)  15 … 30 VDC    Datenbreite Eingangsdaten (intern) max. [Bit]  2  Bit  System supply voltage  DC 5 V; via data contacts    Current consumption, system supply [mA]  3.7  mA  Field supply voltage  DC 24 V (-25 … +30 %); via power jumper contacts    Isolation field – system  500 V AC (1 min)    Indicators  LED (A, C) green: Status DI 1, DI 2    Number of incoming power jumper contacts  3    Number of outgoing power jumper contacts  3    Current carrying capacity of the power jumper contacts [A]  10  A  Number of connections: Inputs/outputs  8    Connection technology: inputs/outputs  CAGE CLAMP®    Connection type (1)  Ein-/Ausgänge    Solid conductor  0.08 … 2.5 mm² / 28 … 14 AWG    Fine-stranded conductor  0.08 … 2.5 mm² / 28 … 14 AWG    Strip length  8 … 9 mm / 0.31 … 0.35 Inch    Width  12 mm / 0.472 Inch    Height  69.8 mm / 2.748 Inch    Height from upper-edge of DIN-35 rail  62.6 mm / 2.465 Inch    Depth  100 mm / 3.937 Inch    Type of mounting  Carrier rail 35 x 15    Color  light gray    Housing material  Polycarbonate, polyamide 6.6    Fire load [MJ]  1.123  MJ  Weight [g]  45.841  g  Conformity marking  CE    Ambient temperature (operation)  0 … 55 °C    Ambient temperature (storage)  -25 … 85 °C    Degree of protection  IP20    Degree of pollution (5)  2 per IEC 61131-2    Mounting position  any    Relative air humidity (no condensation) [%]  95  %  Vibration resistance  acc. to IEC 60068-2-6    Shock resistance  acc. to IEC 60068-2-27    EMC immunity to interference  acc. to EN 61000-6-2, marine applications    EMC emission of interference  acc. to EN 61000-6-4, marine applications    Exposure to pollutants  Per IEC 60068-2-42 and IEC 60068-2-43    Zulässige Schadstoffkonzentration H2S bei einer r  10  ppm  Zulässige Schadstoffkonzentration SO2 bei einer r  25  ppm  Product Family  750/753 Series I/O-System    Main product function  Digital input    Product type  Digital modules

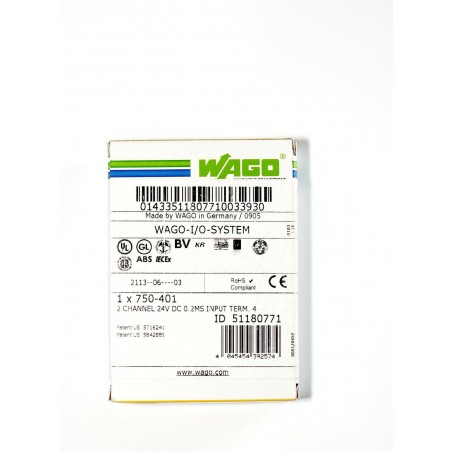

New, in factory sealed box.
