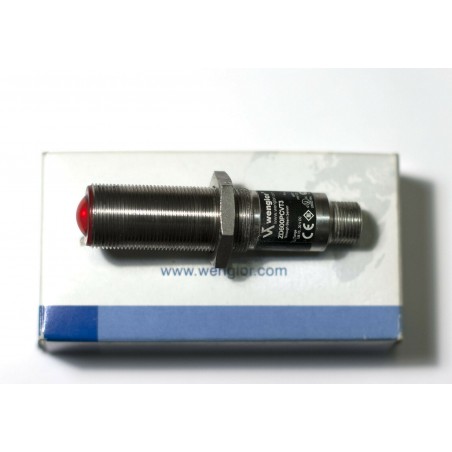

Wenglor ZD600PCVT3 through beam optical sensor

• These through beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.

Optical Data Range 60000 mm Smallest Recognizable Part 50 µm Switching Hysteresis < 15 % Light Source Laser (red) Service Life (T = +25 °C) 100000 h Max. Ambient Light 10000 Lux Opening Angle 12 ° Electrical Data Sensor Type Receiver Supply Voltage 10...30 V DC Current Consumption (Ub = 24 V) < 15 mA Switching Frequency 5 kHz Response Time 100 µs Temperature Drift < 10 % Temperature Range -25...60 °C Switching Output Voltage Drop < 2,5 V Switching Output/Switching Current 200 mA Short Circuit and Overload Protection yes Reverse Polarity Protection yes Teach Mode NT, MT Protection Class III Mechanical Data Setting Method Teach-In Housing Material Stainless Steel Full Encapsulation yes Degree of Protection IP67 Connection M12 × 1; 4-pin Output Contamination Output yes PNP NO/NC switchable yes
