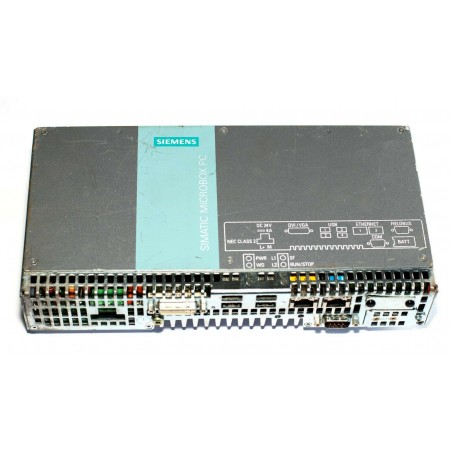

Siemens Simatic Microbox PC 427B 1GB RAM CeleronM 900MHz 6ES7647-7AA30-0RA0 Rail

Siemens Simatic Microbox PC 427B 1GB RAM CeleronM 900MHz 6ES7647-7AA30-0RA0 DIN Rail mount. Tested, in working condition.
The SIMATIC Microbox PC provides high-level industrial performance.

• Compact design
• Maintenance-free operation
• High degree of ruggedness

The device provides industrial PC systems for high-performance and space-saving applications in particular in the field of machine, systems and switchgear cabinet engineering:

• Measuring and controlling of process and machine data (for example, automated washing
• systems, assembling machines, packaging machines)
• Operating and visualization tasks with separate display / monitor solutions (information
• terminals, large-scale displays in automotive production)
• Data logging and processing (for example, system data logging, distributed process
• control)

Basic data

Installation / mounting

•       Installation on a DIN rail

•       Wall mounting

•       Hanging assembly

•       Upright mounting

Processor

• Intel Celeron M 900 MHz, 400 MHz FSB or

• Intel Celeron M 1GHz, 400 MHz FSB, SLC 512 KB or

• Intel Pentium M 1.4 GHz, 400 MHz FSB, SLC 2 MB

Main memory

•      256 MB DDR2 SDRAM SODIMM

•      512 MB DDR2 SDRAM SODIMM

•      1 GB DDR2 SDRAM SODIMM

•      2 GB DDR2 SDRAM SODIMM

Free slots for expansion

Up to 3 x PCI/104 modules or 3x PC/104-Plus module (PCI bus only); installed with expansion frame

Graphic controller

•       Integrated Intel GMA900 graphics

•       CRT resolution of 640x480 pixels up to 1600x1200 pixels

•       DVI resolution of 640x480 pixels up to 1600x1200 pixels

•       8-128 MB graphics memory taken from RAM (dynamic UMA)

Power supply

24 V DC (20.4 - 28.8 V) max. 4 A

Conditions of use

• Operation without fan

Drives and storage media

Compact Flash card

•      256 MByte optional or

•      512 MByte optional or

•      1 GB optional or

•      2 GB optional or

•      4 GB optional

Hard disk

> 80 GB SATA hard disk

Floppy/CDROM drive

Connected via external USB port

USB stick

Connected via external USB port

Ports

Serial

COM1 (RS232)

Graphics

DVI-I: combined DVI and VGA

USB

4 x USB 2.0 high current

Ethernet

2 x RJ 45 (10/100/1000 Mbit/s) or 1x RJ 45 for PROFINET versions

PROFIBUS DP

12 Mbps (isolated potential, compatible to CP 5611), optional

PROFINET

10/100 Mbps (CP 1616 onboard), three RJ45s; optional

CAN interface

on request

Keyboard, mouse

Connected via external USB port

Monitoring and safety functions

Temperature

•      When permitted temperature range is exceeded

•      Warnings can be analyzed by application program (local, via LAN)

Watchdog

•       Monitoring function for program execution

•       Restart can be parameterized in the event of a fault

•       Warnings can be analyzed by application program (local, via LAN)

LED display

4 LEDs (or 5 for PROFINET versions) for displaying system status

2 of these can be programmed by the user1

Transient voltage interruption

Up to 15 ms buffer time at full load

Buffer memory

2 MB battery-buffered SRAM1

Software

Operating systems

Available

•      Without

•      Windows XP Embedded status UPR1 (Update Rollup 1) including SP 2 with Feature Pack 2007 pre-installed

•      Windows XP Professional MUI SP2 pre-installed [1]

•      Windows Vista Ultimate MUI 2

Project-specific

•       LINUX

•       QNX

•       VxWorks

•       Others on request

•       RMOS3 V3.40 (ordered separately)

Typical delivery time:

  Economy shipping (Russian Post) Standard Shipping (EMS Express Post) Europe 14-30 days, in rare cases up to 90 days 7-20 days, in very rare cases up to 90 days United States 20-60 days, in rare cases up to 90 days 14-30 days, in rare cases up to 90 days Canada 14-30 days, in rare cases up to 90 days 7-30 days, in rare cases up to 90 days Asia, India, Africa 14-40 days, in rare cases up to 90 days 7-20 days, in very rare cases up to 90 days Australia and Oceania 14-40 days, in rare cases up to 90 days 10-25 days, in rare cases up to 90 days South and Central America 20-40 days, in rare cases up to 90 days 14-30 days, in rare cases up to 90 days Other countries 20-60 days, in rare cases up to 90 days 10-30 days, in rare cases up to 90 days

All items sold come with Anti-tampering seals and serial numbers are recorded.

Returns will NOT be accepted if tampering seal is destroyed or removed.

Returns will NOT be accepted if serial numbers do not match.

All customs duties in the buyer's country should be paid by the buyer.
