ICP DAS ICP CON I-7024 current and voltage analog output module RS-485 modbus

ICP DAS ICP CON I-7024 current and voltage analog output module RS-485 modbus.

Features:

• I-7024 / M-7024 / M-7024L
  • 4-channel Analog Output
• I-7024R / M-7024R
  • 4-channel Analog Output and 5-channel Digital Input
• Software Selectable Current or Voltage Output
• Power-on Value Setting
• Safe Value Setting
• 3000 VDC Intra-module Isolation
• Programmable Output Slope
• Dual Watchdog
• Wide Operating Temperature Range: -25 to +75°C

The I-7024 is a 14-bit 4-channel analog output module that provides current and voltage outputs. There are options for power-on values and safe values. It features 3000 VDC intra-module isolation.
The I-7024R is the same as the I-7024 and provides additional 5-channel digital inputs and 4 KV ESD protection on each terminal.
The M-7024/M-7024R support Modbus RTU and DCON protocols and can be configured via software. Their hardware specifications are the same as those of the I-7024/I-7024R.

Applications:

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

Models I-7024 M-7024 I-7024R M-7024R M-7024L Analog Output Output Channels 4 Range Voltage 0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V, Current 0 ~ 20 mA, 4 ~ 20 mA Resolution 14-bit 12-bit Accuracy 0.1% DA Output Response Time 10 ms Open Wire Detection
(for current only) - Channel to Channel Isolation - Power-on Value Yes Safe Value Yes Digital Input Channels - 5 - Input Type - Dry Contact (Source) - Contact Level On Voltage Level - Close to GND - Off Voltage Level - Open - Counters Max. Count - 16-bit (65535) - Max. Input Frequency - 50 Hz - Min. Pulse Width - 10 ms -

Models I-7024 M-7024 I-7024R M-7024R M-7024L Communication Interface RS-485 Bias Resistor No (Usually supplied by the RS-485 Master. Alternatively, add a tM-SG4 or SG-785.) Format (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1) Baud Rate 1200 ~ 115200 bps Accuracy DCON Modbus RTU, DCON DCON Modbus RTU, DCON Dual Watchdog Yes, Module (1.6 Seconds), Communication (Programmable) LED Indicator/Display System LED Indicator Yes, 1 LED as Power/Communication Indicator I/O LED Indicator - 7-Segment LED Display - Isolation Intra-Module Isolation, Field-to-Logic 3000 VDC EMS Protection ESD (IEC 61000-4-2) ±2 kV Contact for Each Terminal ±4 kV Contact for Each Terminal ±8 kV Contact for Each Terminal EFT (IEC 61000-4-4) - ±4 kV to Power Line RS (IEC 61000-4-3) - 5 V/m, 80 MHz ~ 1GHz Power Reverse Polarity Protection Yes Input Range +10 ~ +30 VDC Consumption 2.4 W 3.2 W 2.7 W Mechanical Dimensions (L x W x H) 123 mm x 72 mm x 35 mm Installation DIN-Rail or Wall Mounting Environment Operating Temperature -25 to +75°C Storage Temperature -40 to +85°C Humidity 10 to 95% RH, Non-condensing

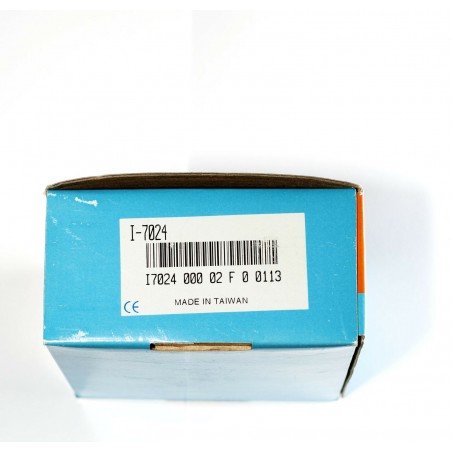

New, in opened package.
