NEW Omron H7GP-C 100 to 240 VAC Total Counter
На всё б/у оборудование предоставляется ограниченная шестимесячная гарантия. Перед оправкой всё оборудование тщательно тестируется и упаковывается в жесткие коробки и пазырчатую плёнку.
Для поставки по России и в пределах таможенного союза используются службы СДЭК, ЕМС, Желдорэкспедиция, Деловые Линии и ПЭК. При необходимости Вы можете отправить запрос на доставку другой транспортной компанией.
Возврат товаров принимается в течении 15 дней после получения.
100 to 240 VAC, Total Counter, 48 x 24 x 84.55 mm, 6 digits, No-voltage/Voltage input (selectable), Increment, Contact output, Transistor output, 30 Hz/5 kHz (switching), with backlit, Memory backup, Reset key, Gray smoke
Function
Total Counter
Rated supply voltage
100 to 240 VAC 50/60 Hz
Operating voltage range
85% to 110% of the rated power supply voltage
Power consumption
Approx. 6.5 VA
External power supply
12 VDC 50 mA
Counter (Count range)
0~999999
Counter (Max. counting speed)
30 Hz/5 kHz (switching) (Minimum counting input signal width: 16.7 ms (ON/OFF ratio: 1:1)/0.1 ms (ON/OFF ratio: 1:1))
Counter (Input mode)
Increment
Counter (Reset system)
External and manual reset
Input signal
Count / Reset / Key protect
Input method
No-voltage/Voltage input (selectable)
No-voltage input (No-contact input)
Short-circuit (ON) impedance: 1 kΩ
Leakage current (0 Ω): 2 mA
Residual voltage: 2 V max.
Open circuit impedance: 100 kΩ
Voltage input
Hight level: 9 to 24 VDC (ON voltage)
Low level: 5 VDC max. (OFF voltage)
Key protect input
Short-circuit (ON) impedance: 1 kΩ
Leakage current (0 Ω): 0.5 mA
Residual_voltage: 0.5 V
Open circuit impedance: 100 kΩ
Response time: 1 s
Minimum input signal width
External reset: 1 ms/20 ms (selectable)
Control output (Contact output)
-
Display method
7-segment backlit negative transmissive LCD
Digits
6digits
Character height
Count value: 8.5 mm (Red)
Zero suppression: Provided
Prescaling function
Not provided
Key protection
Key protect input
Teaching function
Not provided
Batch counting function
Not provided
Communications
Not provided
Memory backup
EEP-ROM (Number of rewite: 200,000 operations min.)
Surrounding air temperature
Operating: -10 to 55 ℃
Storage: -25 to 65 ℃
Ambient humidity
Operating: 35 to 85%
Storage: 35 to 85%
Insulation resistance
100 MΩ min. (at 500 VDC)
Between current carrying terminals and exposed non-current carrying metal parts
Dielectric withstand voltage
Between current carrying terminals and exposed non-current carrying metal parts:2000 VAC 50/60 Hz for 1 min
Between power terminals and control input terminals:2000 VAC 50/60 Hz for 1 min
Impulse withstand voltage
Between power terminals:3.0 kV
Between current carrying terminals and exposed non-current carrying metal parts:4.5 kV
Noise immunity
Between power terminals:±1.5 kV
Between input terminals:±480 V
Square-wave noise by noise simulator (Pulse width: 100 ns/1 µs, 1-ns rise)
Static immunity
Display ±8 kV (malfunction), ±15 kV (destruction)
DIP switch ±4 kV (malfunction), ±8 kV (destruction)
Vibration resistance (Destruction)
10 to 55 Hz, 0.75-mm single amplitude each in 3 directions for 2 h
Vibration resistance (Malfunction)
10 to 55 Hz, 0.5-mm single amplitude each in 3 directions for 10 min
Shock resistance (Destruction)
294 m/s**2, 3 times each in 6 directions (3 axes)
Shock resistance (Malfunction)
200 m/s**2, 3 times each in 6 directions
Degree of protection
Case front: IP66 Oil-resistant type and NEMA Type 4 (indoors)
Mounting method
Flush mounting
External connection method
Screw terminal
Case color
Gray smoke (Front:Light gray (Munsell 5Y7/1))
Accessories
Flush mounting adapter / Waterproof rubber packing / Terminal cover
Weight
Approx. 75 g

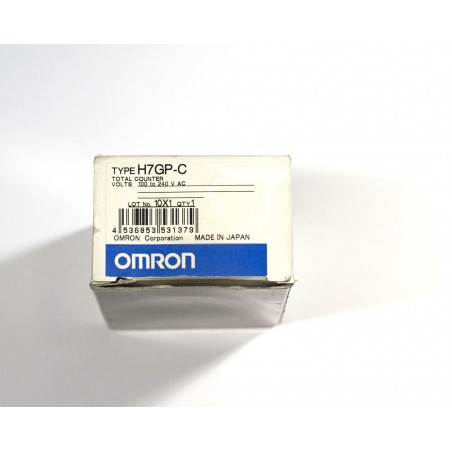

New, in factory box.
Typical delivery time:
Economy shipping (Russian Post) Standard Shipping (EMS Express Post) Europe 14-30 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days United States 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Canada 14-30 days, in rare cases up to 60 days 7-30 days, in rare cases up to 60 days Asia, India, Africa 14-40 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days Australia and Oceania 14-40 days, in rare cases up to 60 days 10-25 days, in rare cases up to 60 days South and Central America 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Other countries 20-60 days, in rare cases up to 80 days 10-30 days, in rare cases up to 70 daysХарактеристики
- Brand
- Omron
- MPN
- H7GP-C
- Country/Region of Manufacture
- Japan
