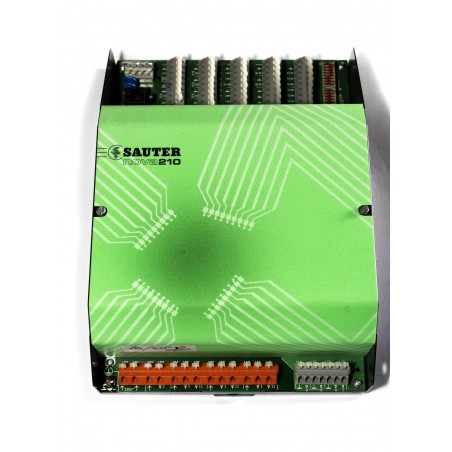

SAUTER NOVA 210 HVAC PLC controller EYL 210 F001 EYL210-F001

The nova210, which is a compact member of the EY3600 family of systems, is designed primarily for the control and regulation of HVAC systems. It has a total of 28 inputs and 10 outputs. Its short cycle time enables it to perform even very fast control tasks. It has communication capability and can be networked without any further provisions having to be made. The unit is programmed (parameterised) using a PC with the EY3600 CASE software and the CASE Editor as per IEC 1131-3. The station has all assemblies and interfaces necessary for operation, for the connection of plant devices and for communication with other stations and with the management level.

Features:
Power supply: 230 V~, 50/60 Hz
Normal operation 0...45 °C (32...113°F)
Digital inputs: 16
Digital outputs: 1×0-I, 3×0-I-II
Analog inputs: 6×Ni/Pt1000, 4×U/I/R
Analog outputs: 3× 0...10 V, 20 mA max. (1× 0...20 mA)
Counters: 2
Interfaces & communication: Station network novaNet 2×a/b terminals, 1× RJ-11 socket

Without factory box.
