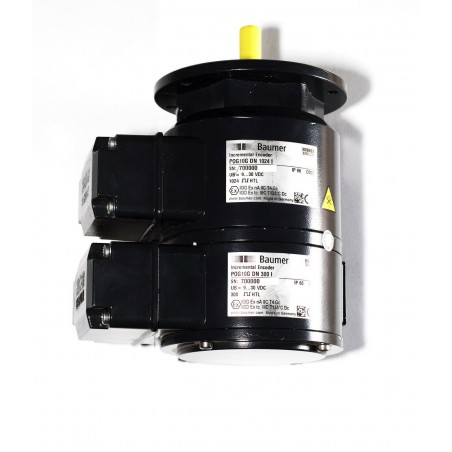

Baumer Hubner HTL rotary incremental encoder POG10G DN 1024 I POG10G DN 300 I

Baumer Hubner HTL rotary incremental encoder

POG10G DN 1024 I

POG10G DN 300 I

Incremental encoder / twin encoder for monitoring of speed or position in plant construction and engineering industry where very high levels of ruggedness are required.

HeavyDuty incremental encoders from HÜBNER have over the years become standard in many areas of industry due to their rugged construction adapted to the application:

• Solid aluminium housing for high vibration and shock resistance
• Push-pull sensing by opto ASIC, compensated for temperature and aging
• EMC in compliance with CE regulations
• Output signals with high-threshold logic HTL or +5 V level TTL meeting RS-422 interface standard
• 2 years warranty within the conditions of the Association of the German Electrical Industry (ZVEI)
• ISO 9001 certified
• UL approved (not for potentially explosive environments)

Special features:

• Special rugged aluminium housing with bearings at each end and high protection class
• For operation in some potentially explosive environments.
   Please see the operating instruction for detailed
   information.
• EURO flange B10, foot B3 as option
• Marine air protected/tropicalized
• Rugged precision incremental metal disk
• Temperature range -30 °C ... +100 °C, optionally down to -50 °C
• Logic level HTL with power transistors - or
  logic level TTL (RS-422) with supply voltage +5 V
   or +9 ... +26 V (version R with internal regulator)
• Stainless steel housing as option
• Large terminal box (connector as option)
• Rear extension shaft as option
• Version with hollow shaft: HOG 10
• Combinations with speed switch: POG 10 + FSL/ESL/DSL
• Offshore version: POG 11
