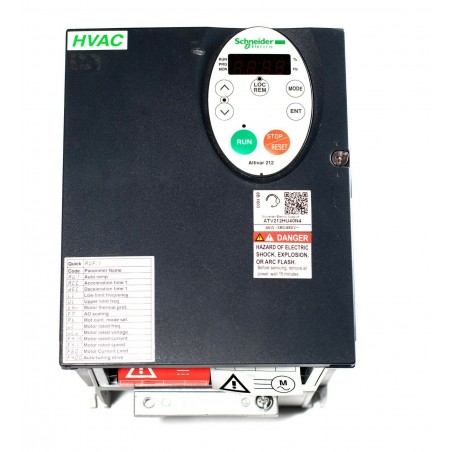

Schneider Electric Altivar 4.0KW Variable speed drive VFD AC 380V ATV212HU40N4

Variable speed drive ATV212 - 4kW - 5hp - 480V - 3ph - EMC - IP21.

Typical delivery time:

  Economy shipping (Russian Post) Standard Shipping (EMS Express Post) Europe 14-30 days, in rare cases up to 90 days 7-20 days, in very rare cases up to 90 days United States 20-60 days, in rare cases up to 90 days 14-30 days, in rare cases up to 90 days Canada 14-30 days, in rare cases up to 90 days 7-30 days, in rare cases up to 90 days Asia, India, Africa 14-40 days, in rare cases up to 90 days 7-20 days, in very rare cases up to 90 days Australia and Oceania 14-40 days, in rare cases up to 90 days 10-25 days, in rare cases up to 90 days South and Central America 20-40 days, in rare cases up to 90 days 14-30 days, in rare cases up to 90 days Other countries 20-60 days, in rare cases up to 90 days 10-30 days, in rare cases up to 90 days
Main range of product Altivar 212 product or component type Variable speed drive device short name ATV212 product destination Asynchronous motors product specific application Pumps and fans in HVAC assembly style With heat sink network number of phases 3 phases motor power kW 4 kW motor power hp 5 hp [Us] rated supply voltage 380...480 V - 15...10 % supply voltage limits 323…528 V supply frequency 50...60 Hz - 5...5 % EMC filter Class C2 EMC filter integrated line current 6.4 A at 480 V
8.1 A at 380 V Complementary apparent power 6.9 kVA at 380 V prospective line Isc 5 kA continuous output current 9.1 A at 380 V
9.1 A at 460 V maximum transient current 10 A for 60 s speed drive output frequency 0.5…200 Hz nominal switching frequency 12 kHz switching frequency 6...16 kHz adjustable
12...16 kHz with derating factor speed range 1…10 speed accuracy +/- 10 % of nominal slip 0.2 Tn to Tn torque accuracy +/- 15 % transient overtorque 120 % of nominal motor torque +/- 10 % for 60 s asynchronous motor control profile Voltage/frequency ratio - Energy Saving, quadratic U/f
Voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo)
Voltage/frequency ratio, 2 points
Voltage/frequency ratio, 5 points
Flux vector control without sensor, standard regulation loop Adjustable PI regulator motor slip compensation Automatic whatever the load
Adjustable
Not available in voltage/frequency ratio motor control local signalling 1 LED (red)DC bus energized: output voltage
