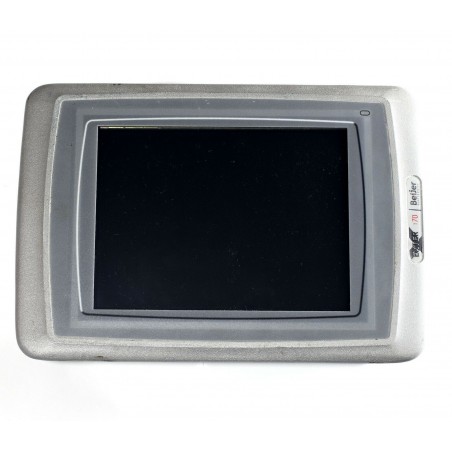

Beijer Exter T70 06010a color operator touch panel ethernet RS-232 RS-422/485

The Beijer Exter T70 06010a is a robust yet slim lightweight operator panel. Features include a 640 x 480 pixel, high resolution 6.5" TFT-display with touch screen. The frame and casing are powder-coated aluminum and the front enclosure is IP66 classified, which means that it is waterproof even when exposed to high pressure washing. The EXTER T70 is also available as a sun-readable panel in black. The operator panel is configured with Information Designer. Information Designer makes it easy to create applications that are logic and user-friendly for the operator, and allows for flexible and efficient interfaces between systems, machines and operators. In less the ten minutes, you can get your first application up and running.

• 640 x 480 pixel, (6.5") diagonal, 64K color, TFT-LCD display
• Resistive touch screen
• 32 MB flash memory, 12 MB application memory, 64 MB RAM
• 416 MHz RISC CPU (Intel XScale®)
• Two serial ports: EIA-422/485 and RS-232C
• USB Host type A (USB 1.1), max output current 500mA
• USB Device type B (USB 1.1)
• 10/100 Mbit/s Ethernet. Shielded RJ-45

• Powder-coated aluminum housing
• 24 VDC (20-30 VDC) Power Input
• Profibus DP Slave
• Compact Flash, type I and II
• 0 to 40 °C operating temperature (horizontal installation)
• 0 to 50 °C operating temperature (vertical installation)
• -20 to 70 °C storage temperature
• NEMA-4X, UL 508/UL 50 4X indoor use only
• CE Certified

Tested, in good condition.
