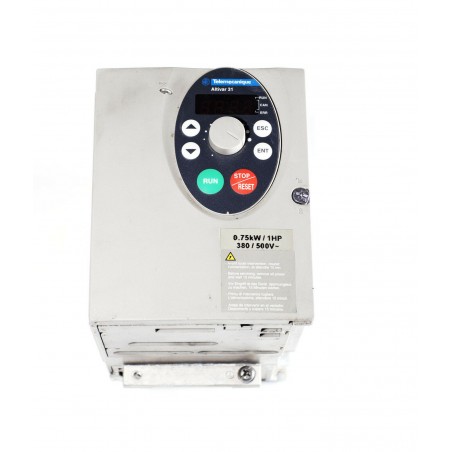

Schneider Electric Altivar Variable speed drive ATV31 0.75kW 500V ATV31H075N4A

Variable speed drive ATV31 - 0.75kW - 500V 3-phase supply - EMC filter - IP20.

Tested, in good condition.

Typical delivery time:

  Economy shipping (Russian Post) Standard Shipping (EMS Express Post) Europe 14-30 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days United States 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Canada 14-30 days, in rare cases up to 60 days 7-30 days, in rare cases up to 60 days Asia, India, Africa 14-40 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days Australia and Oceania 14-40 days, in rare cases up to 60 days 10-25 days, in rare cases up to 60 days South and Central America 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Other countries 20-60 days, in rare cases up to 80 days 10-30 days, in rare cases up to 70 days



Main range of product Altivar product or component type Variable speed drive product specific application Simple machine component name ATV31 assembly style With heat sink variant With drive order potentiometer EMC filter Integrated [Us] rated supply voltage 380...500 V (- 5...5 %) supply frequency 50...60 Hz (- 5...5 %) network number of phases 3 phases motor power kW 0.75 kW 4 kHz motor power hp 1 hp 4 kHz line current 2.7 A 500 V
3.6 A 380 V 1 kA apparent power 2.4 kVA prospective line Isc 1 kA nominal output current 2.3 A 4 kHz maximum transient current 3.5 A 60 s power dissipation in W 41 W at nominal load asynchronous motor control profile Factory set : constant torque
Sensorless flux vector control with PWM type motor control signal analogue input number 4 Complementary product destination Asynchronous motors supply voltage limits 323...550 V network frequency 47.5...63 Hz output frequency 0.0005...0.5 kHz nominal switching frequency 4 kHz switching frequency 2...16 kHz adjustable speed range 1...50 transient overtorque 150...170 % of nominal motor torque braking torque 100 % with braking resistor continuously
150 % without braking resistor
