Schneider Electric BMXCPS3500 Power supply module X80 100..240VAC 36W for M580

Main range of product Modicon X80 product or component type Power supply module backplane compatibility Not compatible with BMEXBP..02 primary voltage 100...240 V supply circuit type AC secondary power 15 W 3.3 V DC I/O module logic power supply
21.6 W 24 V DC sensor power supply
31.2 W 24 V DC I/O module power supply and processor Complementary primary voltage limit 85...264 V network frequency 50/60 Hz network frequency limits 47...63 Hz apparent power 0.07 kVA input current 0.52 A 240 V
1.04 A 115 V inrush current 30 A 120 V
60 A 240 V I²t on activation 1 A².s 120 V
3 A².s 240 V It on activation 0.05 A.s 120 V
0.07 A.s 240 V protection type Internal fuse not accessible primary circuit
Overload protection secondary circuit
Overvoltage protection secondary circuit
Short-circuit protection secondary circuit current at secondary voltage 0.9 A 24 V DC sensor power supply
1.3 A 24 V DC I/O module power supply and processor
4.5 A 3.3 V DC I/O module logic power supply power dissipation in W = 100 MOhm primary/ground
>= 100 MOhm primary/secondary product weight 0.36 kg Environment immunity to microbreaks 1 ms dielectric strength 1500 V primary/ground
1500 V primary/secondary I/O module logic power supply
1500 V primary/secondary I/O module power supply and processor
2300 V primary/secondary sensor power supply
500 V 24 V sensor output/ground vibration resistance 3 gn shock resistance 30 gn IP degree of protection IP20 directives 2012/19/EU - WEEE directive
2014/30/EU - electromagnetic compatibility
2014/35/EU - low voltage directive product certifications CE
CSA
UL
RCM
Merchant Navy
EAC standards EN 61000-6-2
EN 61000-6-4
EN 61131-2
EN 61010-2-201 ambient air temperature for storage -40...85 °C ambient air temperature for operation 0...60 °C relative humidity 5...95 % without condensation 55 °C protective treatment TC operating altitude 0...2000 m
2000...5000 m (with derating factor)

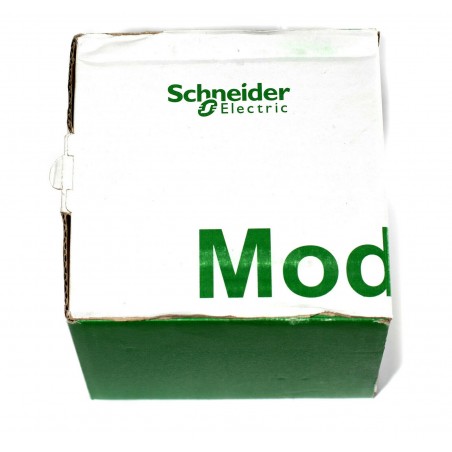

Box can have marks from storage.
