Pepperl+Fuchs SMART Transmitter Power Supply 2-channel isolated HID2030SK 121500
На всё б/у оборудование предоставляется ограниченная шестимесячная гарантия. Перед оправкой всё оборудование тщательно тестируется и упаковывается в жесткие коробки и пазырчатую плёнку.
Для поставки по России и в пределах таможенного союза используются службы СДЭК, ЕМС, Желдорэкспедиция, Деловые Линии и ПЭК. При необходимости Вы можете отправить запрос на доставку другой транспортной компанией.
Возврат товаров принимается в течении 15 дней после получения.
Pepperl+Fuchs SMART Transmitter Power Supply 2-channel isolated HID2030SK 121500
- 2-channel isolated barrier
- 24 V DC supply (bus powered)
- 2-wire SMART transmitters or current sources
- Usable as signal splitter (1 input and 2 outputs)
- Dual output 4 mA ... 20 mA, current sink
- Line fault detection (LFD)
- Up to SIL 2 acc. to IEC 61508
Function
This isolated barrier is used for intrinsic safety applications. It provides a fully floating supply to power 2-wire SMART transmitters in the hazardous area, and repeats the current to drive a safe area load. It is also used with 2-wire current sources. It is designed to provide a sink mode output on the safe area terminals Digital signals may be superimposed on the analog values in the hazardous or safe area, which are transferred bidirectionally. A separate fault output on the bus is signaled if the input signal is outside the range 0.2 mA ... 24 mA. The fault conditions can be monitored via a Fault Indication Board. This module mounts on a HiD Termination Board.
Application
The device supports the following SMART protocols:
- HART
- BRAIN
- Bailey (only STT02 communication, e. g. BCN series)
- Foxboro

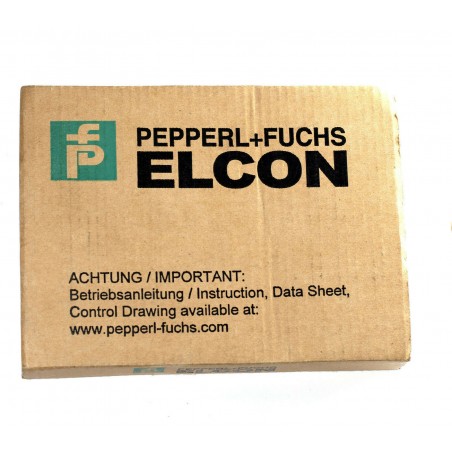

New, in factory box, box can have marks from storage.
Typical delivery time:
Economy shipping (Russian Post) Standard Shipping (EMS Express Post) Europe 14-30 days, in rare cases up to 90 days 7-20 days, in very rare cases up to 70 days United States 20-60 days, in rare cases up to 90 days 14-30 days, in rare cases up to 70 days Canada 14-30 days, in rare cases up to 90 days 7-30 days, in rare cases up to 70 days Asia, India, Africa 14-40 days, in rare cases up to 90 days 7-20 days, in very rare cases up to 70 days Australia and Oceania 14-40 days, in rare cases up to 90 days 10-25 days, in rare cases up to 70 days South and Central America 20-40 days, in rare cases up to 90 days 14-30 days, in rare cases up to 70 days Other countries 20-60 days, in rare cases up to 90 days 10-30 days, in rare cases up to 70 daysХарактеристики
- Brand
- Pepperl+Fuchs
- MPN
- HID2030SK
- Current Type
- DC
- Output Type
- Analog
