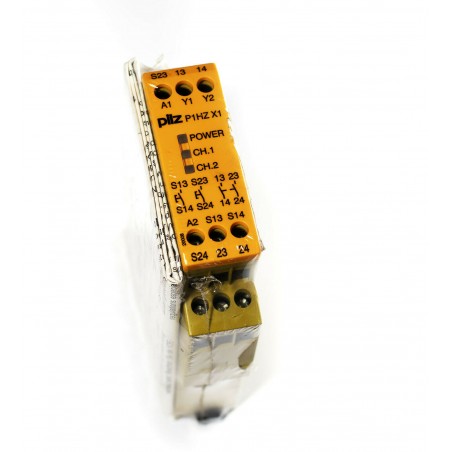

Pilz Safety relay standalone two-hand control device P1HZ X1 24VDC 2n/o 774360
На всё б/у оборудование предоставляется ограниченная шестимесячная гарантия. Перед оправкой всё оборудование тщательно тестируется и упаковывается в жесткие коробки и пазырчатую плёнку.
Для поставки по России и в пределах таможенного союза используются службы СДЭК, ЕМС, Желдорэкспедиция, Деловые Линии и ПЭК. При необходимости Вы можете отправить запрос на доставку другой транспортной компанией.
Возврат товаров принимается в течении 15 дней после получения.
Pilz P1HZ X1 24VDC 2n/o Safety relay (standalone)
Inputs: 1 N/O per pushbutton Outputs: 2 N/O UB 24 V DC, width: 22.5 mm, integral screw terminals, two-hand control device, monitoring the simultaneity of a two-hand pushbutton.
Technical details Certifications: CE, cULus Listed, EAC (Eurasian), TÜV, CCC Application options: Two-hand monitoring Type III A Standards: EN 574 TYP III A, EN 62061, EN ISO 13849-1, VDE 0113-1 Operating modes: Dual-channel, Detection of shorts across contacts Number of instantaneous safety contacts: 2 Supply voltage (V): 24,0 Supply voltage type: DC Terminal style: fixed Terminal type: Screw terminal Stop category: 0 Max. current at DC13 I (6 cycles/min): 2.5 A Width dimension: 22.5 mm Height dimension: 87.0 mm Depth dimension: 121.0 mm Gross weight: 205 g Net weight: 200 g Ambient temperature: -25 - 55 °CNew, in factory sealed package.
Typical delivery time:
Economy shipping (Russian Post) Standard Shipping (EMS Express Post) Europe 14-30 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days United States 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Canada 14-30 days, in rare cases up to 60 days 7-30 days, in rare cases up to 60 days Asia, India, Africa 14-40 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days Australia and Oceania 14-40 days, in rare cases up to 60 days 10-25 days, in rare cases up to 60 days South and Central America 20-40 days, in rare cases up to 70 days 14-30 days, in rare cases up to 60 days Other countries 20-60 days, in rare cases up to 80 days 10-30 days, in rare cases up to 70 daysХарактеристики
- Brand
- Pilz
- MPN
- P1HZ X1 24VDC 2n/o
- Control Voltage
- 24VDC
