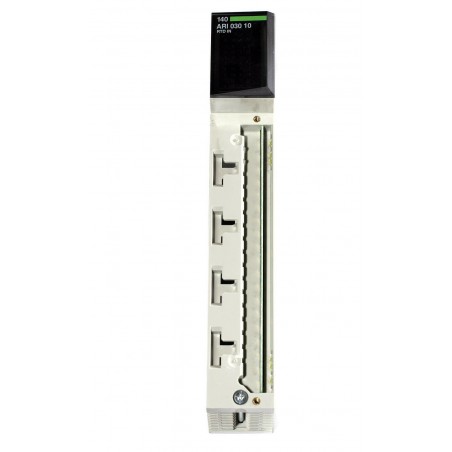

Schneider Automation TSX Quantum RTD IN 8 CH 140 ARI 030 10 140ARI03010

Analog input module RTD Modicon Quantum - 8 I Ni / Pt 100, 200, 500, 1000

Characteristics  Main range of product Modicon Quantum automation platform product or component type Analogue input module Complementary analogue input number 8 input type Differential addressing requirement 9 input words analogue input type Temperature probe - 100...450 °C Pt 100, Pt 200, Pt 500, Pt 1000
Temperature probe - 200...850 °C Pt 100, Pt 200, Pt 500, Pt 1000
Temperature probe - 60...180 °C Ni 100, Ni 200, Ni 500, Ni 1000
Temperature probe 0.5 mA Ni 100, Ni 200, Ni 500, Ni 1000
Temperature probe 2.5 mA Pt 100, Pt 200, Ni 100, Ni 200 analogue input resolution 13 bits input impedance >= 10 MOhm absolute accuracy error 0.1 °C linearity error +/- 0.01 % full scale
+/- 0.5 °C accuracy drift according to temperature +/- 0.5 °C at 25 °C
+/- 0.9 °C at 0...60 °C isolation between channels and bus 2500 V DC for 60 s
1780 V AC 47...63 Hz for 60 s isolation between channels 300 Vrms AC update time 1200 ms 3 wires
640 ms 2 wires/4 wires fault type Broken wire
Overtacking scale marking CE local signalling 1 LED green bus communication is present (Active)
1 LED red external fault
8 LEDs green channel is turned on
8 LEDs red channel fault bus current requirement 200 mA power dissipation in W 1 W module format Standard product weight 0.3 kg Environment standards CSA C22.2 No 142
UL 508 product certifications CUL
FM Class 1 Division 2 resistance to electrostatic discharge 4 kV contact conforming to IEC 801-2
8 kV on air conforming to IEC 801-2 resistance to electromagnetic fields 10 V/m 80...1000 MHz conforming to IEC 801-3 ambient air temperature for operation 0...60 °C ambient air temperature for storage -40...85 °C relative humidity 95 % without condensation operating altitude
