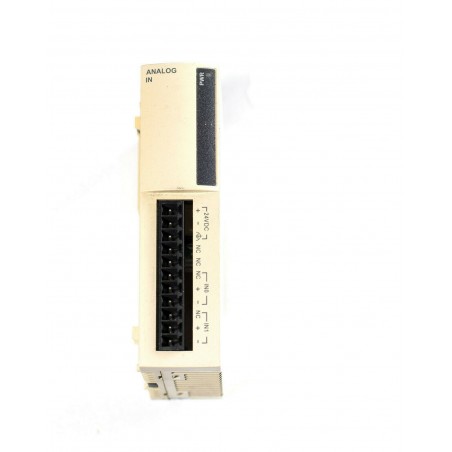

Schneider Electric Twido Analog input module 2 inputs 0-10V 4-20 mA TWDAMI2HT

TWDAMI2HT

Analog input module Twido - 24 V DC supply - 2 inputs 0-10V, 4-20 mA.

Main range of product Twido product or component type Analogue input module analogue input number 2 analogue input type Current 4...20 mA differential
Voltage 0...10 V non differential analogue input resolution 12 bits I/O connection Removable screw terminal block cross talk = 1000000 Ohm voltage source
10 Ohm current source sampling duration 16 ms sampling repetition time 16 ms acquisition period 16 ms per channel + 1 controller cycle time measurement error +/- 0.2 % of full scale 0...10 V 0...10 V at 25 °C
+/- 0.2 % of full scale 4...20 mA 4...20 mA at 25 °C temperature coefficient +/-0.006 %FS/°C, analogue input type: current
+/-0.006 %FS/°C, analogue input type: voltage repeat accuracy +/-0.5 %FS non-linearity +/- 0.2 %FS, analogue input type: current
+/- 0.2 %FS, analogue input type: voltage total error +/-1 %FS, analogue input type: current
+/-1 %FS, analogue input type: voltage common mode rejection - 50 dB type of cable Shielded twisted pair insulation between channel and internal logic Photocoupler supply External supply [Us] rated supply voltage 24 V DC supply voltage limits 20.4...28.8 V current consumption 50 mA at 5 V DC
60 mA at 24 V DC marking CE product weight 0.085 kg Environment dielectric strength 500 V between the inputs and the supply circuit product certifications CSA
UL IP degree of protection IP20 ambient air temperature for operation 0...55 °C ambient air temperature for storage -25...70 °C
