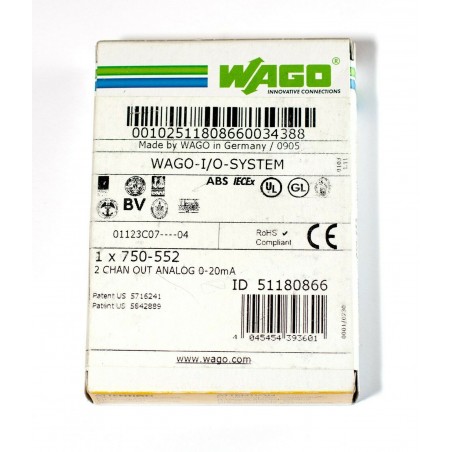

Wago 750-552 2-channel analog output 0 … 20 mA light gray

Wago 2-channel analog output; 0 … 20 mA; light gray This analog output module generates standard 0–20 mA signals. The output signal is electrically isolated and transmitted with a resolution of 12 bits. Power is derived from the field side.
New, in factory box.

Typical delivery time:

  Economy shipping (Russian Post) Standard Shipping (EMS Express Post) Europe 14-30 days, in rare cases up to 90 days 7-20 days, in very rare cases up to 90 days United States 20-60 days, in rare cases up to 90 days 14-30 days, in rare cases up to 90 days Canada 14-30 days, in rare cases up to 90 days 7-30 days, in rare cases up to 90 days Asia, India, Africa 14-40 days, in rare cases up to 90 days 7-20 days, in very rare cases up to 90 days Australia and Oceania 14-40 days, in rare cases up to 90 days 10-25 days, in rare cases up to 90 days South and Central America 20-40 days, in rare cases up to 90 days 14-30 days, in rare cases up to 90 days Other countries 20-60 days, in rare cases up to 90 days 10-30 days, in rare cases up to 90 days
Details Technical Data Number of analog outputs 2 Total number of channels (module) 2 Signal type Electricity Signal type (current) DC 0 … 20 mA Actuator connection 2 x (2-wire) Resolution [bit] 12 Bit Data width 2 x 16-bit data; 2 x 8-bit control/status (optional) Load impedance (current output) ≤ 600 Ω Conversion time (typ. ≤) 2 ms Measurement error (reference temperature) 25 °C Measurement error – deviation (max.) from the upper-range value 0.1 % Temperature error (max.) of the upper-range value 0.01 %/K Linearity ±10 µA Supply voltage (system) DC 5 V; via data contacts Power consumption (5 V system supply) 70 mA Supply voltage (field) DC 24 V (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact) Isolation 500 V system/field Number of incoming power jumper contacts 2 Number of outgoing power jumper contacts 2 Less Connection data Connection technology: inputs/outputs 8 x CAGE CLAMP® Connection type (1) Inputs/Outputs Solid conductor 0.08 … 2.5 mm² / 28 … 14 AWG Fine-stranded conductor 0.08 … 2.5 mm² / 28 … 14 AWG Strip length 8 … 9 mm / 0.31 … 0.35 inch Physical data Width 12 mm / 0.472 inch Height 100 mm / 3.937 inch Depth 69.8 mm / 2.748 inch Depth from upper edge of DIN-rail 62.6 mm / 2.465 inch Mechanical data Mounting type DIN-35 rail Material Data Color light gray Housing material Polycarbonate, polyamide 6.6 Weight 50.1 g Conformity marking CE Environmental Requirements Surrounding air temperature (operation) 0 … 55 °C Surrounding air temperature (storage) -40 … 85 °C Protection type IP20 Pollution degree (5) 2 per IEC 61131-2 Operating altitude 0 … 2000 m Mounting position horizontal (standing/lying); vertical Relative humidity (without condensation) 95 % Vibration resistance 4g per IEC 60068-2-6 Shock resistance 15g per IEC 60068-2-27 EMC immunity to interference per EN 61000-6-2, marine applications EMC emission of interference per EN 61000-6-4, marine applications Exposure to pollutants Per IEC 60068-2-42 and IEC 60068-2-43 Permissible H2S contaminant concentration at a relative humidity 75 % 10 ppm Permissible SO2 contaminant concentration at a relative humidity 75 % 25 ppm
