Schneider Electric Zelio Modbus network slave communication module SR3MBU01BD

95,00 $
264079170882
Количество
Последние товары на складе



На всё б/у оборудование предоставляется ограниченная шестимесячная гарантия. Перед оправкой всё оборудование тщательно тестируется и упаковывается в жесткие коробки и пазырчатую плёнку.



Для поставки по России и в пределах таможенного союза используются службы СДЭК, ЕМС, Желдорэкспедиция, Деловые Линии и ПЭК. При необходимости Вы можете отправить запрос на доставку другой транспортной компанией.



Возврат товаров принимается в течении 15 дней после получения.

Smart Relay - Zelio Logic SR2/SR3 - SR3MBU01BD Communication Modbus network slave communication module - for SR3 24 V DC smart relay.

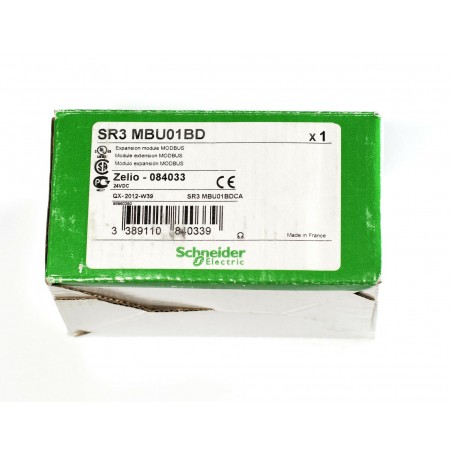

New, in factory box.

Main range of product Zelio Logic product or component type Modbus slave communication module wiring mode 2 or 4 wires Complementary product compatibility All modules with 24 V supply SR3 B...BD communication port protocol Modbus communication port support RS485 electrical connection 1 connector RJ45 transmission frame ASCII
RTU transmission rate 1200 bauds
19200 bauds
2400 bauds
28800 bauds
38400 bauds
4800 bauds
57600 bauds
9600 bauds parity Even
No
Odd number of addresses 1...247 programming language FBD
Ladder connections - terminals Screw terminals, 1 x 0.25...1 x 2.5 mm², AWG 24...AWG 14, semi-solid cable
Screw terminals, 1 x 0.25...1 x 2.5 mm², AWG 24...AWG 14, solid cable
Screw terminals, 2 x 0.25...2 x 1.5 mm², AWG 23...AWG 16, solid cable
Screw terminals, 1 x 0.25...1 x 2.5 mm², AWG 24...AWG 14, flexible cable with cable end
Screw terminals, 2 x 0.25...2 x 0.75 mm², AWG 24...AWG 18, flexible cable with cable end tightening torque 0.5 N.m local signalling 1 LED for communication
1 LED for power ON product weight 0.11 kg Environment product certifications CSA
C-Tick
GL
GOST
UL standards EN/IEC 60068-2-27 Ea
EN/IEC 60068-2-6 Fc
EN/IEC 61000-4-2 level 3
EN/IEC 61000-4-3
EN/IEC 61000-4-4 level 3
EN/IEC 61000-4-5 IP degree of protection IP20 (terminal block) conforming to IEC 60529
IP40 (front panel) conforming to IEC 60529 environmental characteristic EMC directive conforming to EN/IEC 61000-6-2
EMC directive conforming to EN/IEC 61000-6-3
EMC directive conforming to EN/IEC 61000-6-4
EMC directive conforming to EN/IEC 61131-2 zone B
Low voltage directive conforming to EN/IEC 61131-2 disturbance radiated/conducted Class B conforming to EN 55022-11 group 1 pollution degree 2 conforming to EN/IEC 61131-2 ambient air temperature for operation -20...55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2
-20...40 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 ambient air temperature for storage -40...70 °C operating altitude 2000 m altitude transport

2 шт.

Характеристики

Brand
Schneider Electric
MPN
SR3MBU01BD
Model
SR3MBU01BD
Controller Platform
Zelio
