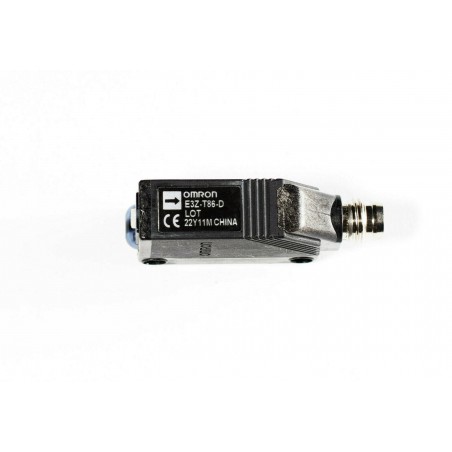

Omron E3Z-T86-D Through-beam, Sensing distance: 15 m, Light-ON/Dark-ON sensor

Shape Square type Sensing method Through-beam Sensing distance 15 m Standard sensing object Opaque 12 mm dia. min. Directional angle Emitter: 3 to 15 DEG
Receiver: 3 to 15 DEG Light source Infrared LED (Emission wave length: 870 nm) Power supply voltage 12 to 24 VDC ±10% (ripple (p-p) 10% max.) Current consumption Emitter: 15 mA max.
Receiver: 20 mA max. Control output PNP open collector output
26.4 VDC max.
Load current: 100 mA max.
Residual voltage: 1 V max. (Load current Less than 10mA)/Residual voltage: 2 V max. (Load current: 10 to 100 mA) Operation mode Light-ON/Dark-ON selectable Protective circuit Output short-circuit protection
Output reverse polarity protection
Power supply reverse polarity protection Response time 1 ms max. (Operate or reset) Sensitivity setting Single-turn adjustment Ambient illuminance Incandescent lamp: 3000 lux max., Sunlight: 10000 lux max. Ambient temperature (Operating) -40 to 55 ℃
(with no icing or condensation) Ambient temperature (Storage) -40 to 70 ℃
(with no icing or condensation) Ambient humidity Operating: 35 to 85%
Storage: 35 to 95%
(with no icing or condensation) Insulation resistance 20 MΩ min. at 500 VDC Dielectric strength 1000 VAC at 50/60 Hz for 1 min Vibration resistance 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions Shock resistance 500 m/s**2 for 3 times each in X, Y, and Z directions Degree of protection IEC: IP67 Connection method M8 connector models Indicator Operation indicator (orange), Stability indicator (green), Power indicator (orange) Weight (packed state) Approx. 30 g Material Case: PBT
Lens: Denatured Polyarylate



Tested, in good condition.
