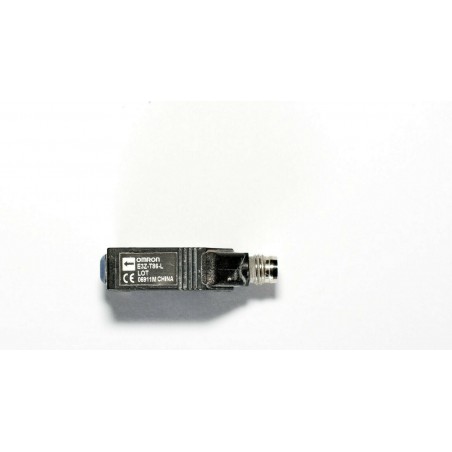

Omron E3Z-T86-L Through-beam, Sensing distance: 15 m, Light-ON/Dark-ON sensor
$4.90
264500652332
We provide 6-month warranty for all used products. Before shipping all products carefully tested and packed in hard box with bubble wrap. If you pay with PayPal you can use buyer protection program.
For shipping we use EMS express post (delivery within 5-20 days). By additional request we can use DHL, UPS or FEDex services. In this case price for shipping will be calculated individually.
We accept returns within 15 days after receiving goods.
Shape
Square type
Sensing method
Through-beam
Sensing distance
15 m
Standard sensing object
Opaque 12 mm dia. min.
Directional angle
Emitter: 3 to 15 DEG
Receiver: 3 to 15 DEG Light source Infrared LED (Emission wave length: 870 nm) Power supply voltage 12 to 24 VDC ±10% (ripple (p-p) 10% max.) Current consumption Emitter: 15 mA max.
Receiver: 20 mA max. Control output PNP open collector output
26.4 VDC max.
Load current: 100 mA max.
Residual voltage: 1 V max. (Load current Less than 10mA)/Residual voltage: 2 V max. (Load current: 10 to 100 mA) Operation mode Light-ON/Dark-ON selectable Protective circuit Output short-circuit protection
Output reverse polarity protection
Power supply reverse polarity protection Response time 1 ms max. (Operate or reset) Sensitivity setting Single-turn adjustment Ambient illuminance Incandescent lamp: 3000 lux max., Sunlight: 10000 lux max. Ambient temperature (Operating) -40 to 55 ℃
(with no icing or condensation) Ambient temperature (Storage) -40 to 70 ℃
(with no icing or condensation) Ambient humidity Operating: 35 to 85%
Storage: 35 to 95%
(with no icing or condensation) Insulation resistance 20 MΩ min. at 500 VDC Dielectric strength 1000 VAC at 50/60 Hz for 1 min Vibration resistance 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions Shock resistance 500 m/s**2 for 3 times each in X, Y, and Z directions Degree of protection IEC: IP67 Connection method M8 connector models Indicator Operation indicator (orange), Stability indicator (green), Power indicator (orange) Weight (packed state) Approx. 30 g Material Case: PBT
Lens: Denatured Polyarylate
Receiver: 3 to 15 DEG Light source Infrared LED (Emission wave length: 870 nm) Power supply voltage 12 to 24 VDC ±10% (ripple (p-p) 10% max.) Current consumption Emitter: 15 mA max.
Receiver: 20 mA max. Control output PNP open collector output
26.4 VDC max.
Load current: 100 mA max.
Residual voltage: 1 V max. (Load current Less than 10mA)/Residual voltage: 2 V max. (Load current: 10 to 100 mA) Operation mode Light-ON/Dark-ON selectable Protective circuit Output short-circuit protection
Output reverse polarity protection
Power supply reverse polarity protection Response time 1 ms max. (Operate or reset) Sensitivity setting Single-turn adjustment Ambient illuminance Incandescent lamp: 3000 lux max., Sunlight: 10000 lux max. Ambient temperature (Operating) -40 to 55 ℃
(with no icing or condensation) Ambient temperature (Storage) -40 to 70 ℃
(with no icing or condensation) Ambient humidity Operating: 35 to 85%
Storage: 35 to 95%
(with no icing or condensation) Insulation resistance 20 MΩ min. at 500 VDC Dielectric strength 1000 VAC at 50/60 Hz for 1 min Vibration resistance 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions Shock resistance 500 m/s**2 for 3 times each in X, Y, and Z directions Degree of protection IEC: IP67 Connection method M8 connector models Indicator Operation indicator (orange), Stability indicator (green), Power indicator (orange) Weight (packed state) Approx. 30 g Material Case: PBT
Lens: Denatured Polyarylate
Tested, in good condition.
Typical delivery time:
Economy shipping (Russian Post) Standard Shipping (EMS Express Post) Europe 14-30 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days United States 20-40 days, in rare cases up to 70 days 14-30 days, in rare cases up to 60 days Canada 14-30 days, in rare cases up to 60 days 7-30 days, in rare cases up to 60 days Asia, India, Africa 14-40 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days Australia and Oceania 14-40 days, in rare cases up to 60 days 10-25 days, in rare cases up to 60 days South and Central America 20-40 days, in rare cases up to 70 days 14-30 days, in rare cases up to 60 days Other countries 20-60 days, in rare cases up to 80 days 10-30 days, in rare cases up to 70 days
2 Items
Data sheet
- Brand
- Omron
- MPN
- E3Z-T86-L
- UPC
- Does not apply
- Body Type
- Block
