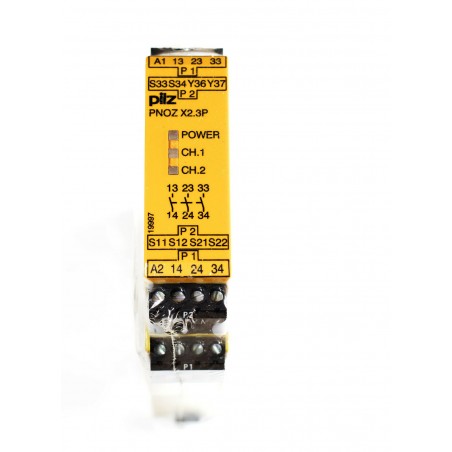

NEW Pilz PNOZ X2.3P 24VACDC 3n/o safety relay 777304

NEW Pilz PNOZ X2.3P 24VACDC 3n/o safety relay.

Approvals: CE, cULus Listed, EAC (Eurasian), TÜV, CCC Application options: Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch Operating modes: Single-channel, Automatic reset, Dual-channel, Manual reset, Detection of shorts across contacts, Monitored manual reset Product standard: EN 60947-5-1 Standards: EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1 Supply voltage (V): 24,0 Supply voltage type: AC/DC Terminal style: Plug-in Terminal type: Screw terminal Number of instantaneous safety contacts: 3 Stop category: 0 Max. current at DC13 I (6 cycles/min): 4.0 A Max. current at AC15: 5.0 A Width dimension: 22.5 mm Height dimension: 94.0 mm Depth dimension: 121.0 mm Gross weight: 215 g Net weight: 205 g Ambient temperature: -10 - 55 °C

New, in factory package.
