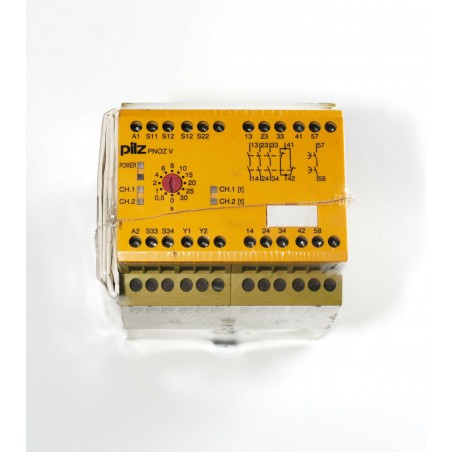

NEW SAFETY RELAY PILZ PNOZ V 30s 24VDC 3n/o 1n/c 1n/o t 774790
$450.00
254430461492
We provide 6-month warranty for all used products. Before shipping all products carefully tested and packed in hard box with bubble wrap. If you pay with PayPal you can use buyer protection program.
For shipping we use EMS express post (delivery within 5-20 days). By additional request we can use DHL, UPS or FEDex services. In this case price for shipping will be calculated individually.
We accept returns within 15 days after receiving goods.
Safety relay (standalone) Inputs: 1-/2-channel wiring without detection of shorts across contacts Outputs: 3 N/O, 1 N/C, 1 N/O delayed UB 24 V DC, width: 90 mm, plug-in terminals of screw type Monitoring E-STOP, safety gates with a delay-on de-energisation contact. Release time 12 stages from 0 - 30 s.
Technical details Approvals: CE, cULus Listed, TÜV, CCC Application options: Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch, Delayed E-STOP monitoring Operating modes: Single-channel, Automatic reset, Dual-channel, Manual reset Product standard: EN 60947-5-1 Standards: EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1 Supply voltage (V): 24,0 Supply voltage type: DC Terminal style: fixed Terminal type: Screw terminal Number of instantaneous safety contacts: 3 Number of delayed safety contacts: 1 Safety contact delay type: Delay-on de-energisation Number of auxiliary contacts: 1 Selectable times: 0,05 s, 0,50 s, 1,00 s, 10,00 s, 15,00 s, 2,00 s, 20,00 s, 25,00 s, 30,00 s, 4,00 s, 6,00 s, 8,00 s Stop category: 0/1 Max. current at DC13 I (6 cycles/min): 7.0 A Max. current at AC15: 5.0 A Width dimension: 90.0 mm Height dimension: 87.0 mm Depth dimension: 121.0 mm Gross weight: 485 g Net weight: 475 g Ambient temperature: -10 - 55 °C New, in factory package.
Typical delivery time:
Economy shipping (Russian Post) Standard Shipping (EMS Express Post) Europe 14-30 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days United States 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Canada 14-30 days, in rare cases up to 60 days 7-30 days, in rare cases up to 60 days Asia, India, Africa 14-40 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days Australia and Oceania 14-40 days, in rare cases up to 60 days 10-25 days, in rare cases up to 60 days South and Central America 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Other countries 20-60 days, in rare cases up to 80 days 10-30 days, in rare cases up to 70 days
2 Items
Data sheet
- Brand
- Pilz
- MPN
- 30s 24VDC 3n/o 1n/c 1n/o t
- Model
- PNOZ V 774790
