EATON MTL4546 ISOLATING DRIVER for 4–20mA HART valve positioners MTL 4546

MTL4546 ISOLATING DRIVER for 4–20mA HART valve positioners with line fault detection.

The MTLx546 accepts a 4/20mA floating signal from a safe-area controller to drive a current/pressure converter (or any other load up to 800Ω) in a hazardous area. For HART valve positioners, the module also permits bi-directional transmission of digital communication signals. Process controllers with a readback facility can detect open or short circuits in the field wiring: if these occur, the current taken into the terminals drops to a preset level. The MTL4546C and the MTLx546Y are very similar to the MTLx546 except that they provide open circuit detection only (i.e. no short-circuit detection).

SPECIFICATION

• Number of channels One
• Location of I/P converter Zone 0, IIC, T4–6 hazardous area if suitably certified Div. 1, Group A, hazardous location
• Working range 4 to 20mA
• Digital signal bandwidth 500Hz to 10kHz
• Maximum load resistance 800Ω (16V at 20mA)
• Minimum load resistance 90Ω (short-circuit detection at < 50Ω)
• Output resistance > 1MΩ
• Under/over range capability Under range = 1mA Over range = 24mA (load ≤ 520Ω)
• Input and output circuit ripple < 40µA peak-to-peak
• Transfer accuracy at 20°C Better than 20µA
• Temperature drift < 1.0µA/°C
• Response time Settles within 200µA of final value within 100ms
• Communications supported HART
• LED indicator Green: power indication
• Maximum current consumption (with 20mA signals into 250Ω load) 35mA at 24V dc
• Power dissipation within unit (with 20mA signals into 250Ω load) 0.8W at 24V
• Safety description Uo=28V Io=93mA Po=651mW Um = 253V rms or dc

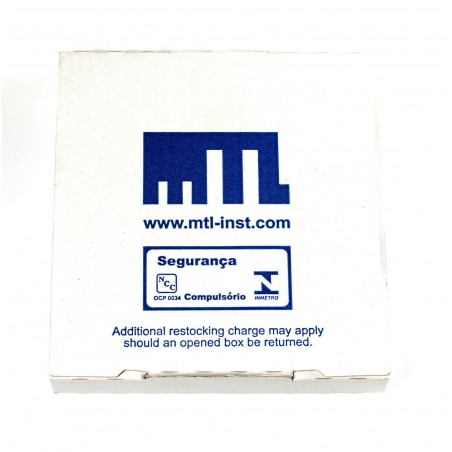

New, in factory box.
