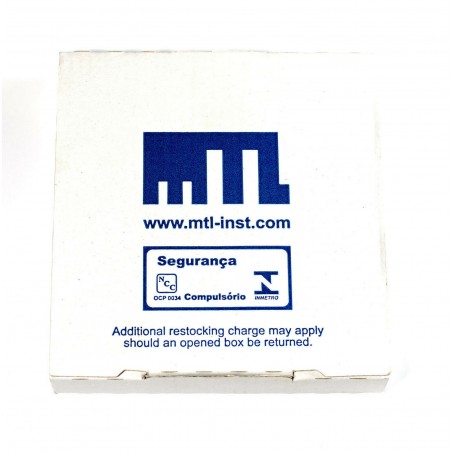

EATON MTL4544S REPEATER POWER SUPPLY 2-channel 4/20mA HART 2 3 wire MTL 4544 S
1 200,00 $
264712593189
На всё б/у оборудование предоставляется ограниченная шестимесячная гарантия. Перед оправкой всё оборудование тщательно тестируется и упаковывается в жесткие коробки и пазырчатую плёнку.
Для поставки по России и в пределах таможенного союза используются службы СДЭК, ЕМС, Желдорэкспедиция, Деловые Линии и ПЭК. При необходимости Вы можете отправить запрос на доставку другой транспортной компанией.
Возврат товаров принимается в течении 15 дней после получения.
MTL4544S REPEATER POWER SUPPLY 2-channel, 4/20mA, HART®, 2- or 3- wire transmitters.
The MTLx544 provides fully-floating dc supplies for energising two conventional 2-wire or 3-wire 4/20mA or HART transmitters located in a hazardous area, and repeats the current in other circuits to drive two safe-area loads. For smart transmitters, the unit allows bi-directional transmission of digital communication signals superimposed on the 4/20mA loop current. Alternatively, the MTLx544S acts as a current sink for a safe-area connection rather than driving a current into the load. Separately powered current sources, such as 4-wire transmitters, can be connected but will not support HART communication.
SPECIFICATION
- Number of channels Two
- Location of transmitter Zone 0, IIC, T4–6 hazardous area if suitably certified Div. 1, Group A hazardous location
- Safe-area output
- Signal range: 4 to 20mA
- Under/over-range: 0 to 24mA
- Safe-area load resistance (MTLx 544) @ 24mA: 0 to 360Ω @ 20mA: 0 to 450Ω
- Safe-area load (MTLx544S) Current sink: 600Ω max. Maximum voltage source: 24V dc
- Safe-area circuit output resistance: > 1MΩ
- Safe-area circuit ripple < 50µA peak-to-peak
- Hazardous-area input Signal range: 0 to 24mA (including over-range)
- Transmitter voltage: 16.5V at 20mA
- Transfer accuracy at 20°C Better than 15µA
- Temperature drift < 0.8µA/°C
- Response time Settles to within 10% of final value within 50µs
- Communications supported HART (terminals 1 & 2 and 4 & 5 only)
- LED indicator Green: power indication
- Maximum current consumption (with 20mA signals) 96mA at 24V dc
- Power dissipation within unit (with 20mA signals) MTLx544 1.4W @ 24V dc MTLx544S 1.9W @ 24V dc
- Safety description (each channel) Terminals 2 to 1 and 3, and 5 to 4 and 6: Uo=28V Io=93mA Po=651mW Um = 253V rms or dc Terminals 1 to 3 and 4 to 6: Simple apparatus ≤1.5V, ≤0.1A and ≤25mW; can be connected without further certification into any IS loop with an open-circuit voltage
5 шт.
Характеристики
- Brand
- Eaton
- MPN
- MTL4544S
- Model
- 4544S
- Controller Platform
- MTL
