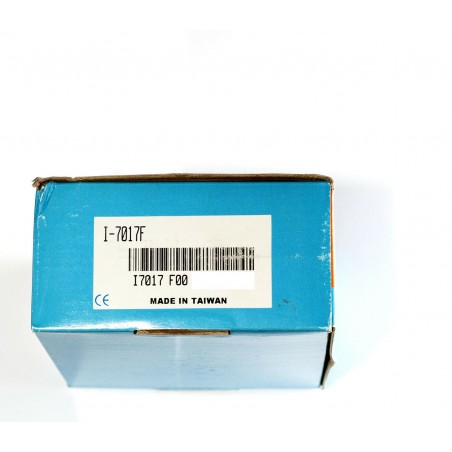

ICP DAS ICP CON I-7017F Analog Voltage and Current Input RS-485 MODBUS
На всё б/у оборудование предоставляется ограниченная шестимесячная гарантия. Перед оправкой всё оборудование тщательно тестируется и упаковывается в жесткие коробки и пазырчатую плёнку.
Для поставки по России и в пределах таможенного союза используются службы СДЭК, ЕМС, Желдорэкспедиция, Деловые Линии и ПЭК. При необходимости Вы можете отправить запрос на доставку другой транспортной компанией.
Возврат товаров принимается в течении 15 дней после получения.
ICP DAS ICP CON I-7017F Analog Voltage and Current Input with RS-485 MODBUS.
- I-7017 and I-7017F
- 8-channel Differential or 6-channel Differential and 2-channel Single-ended Analog Input
- Voltage and Current Input
- +/-120 VDC Overvoltage Protection
- High Resolution: 16-bit
- Open Wire Detection for 4 ~ 20 mA
- 3000 VDC Intra-module Isolation
- Dual Watchdog
- RoHS Compliant
- Wide Operating Temperature Range: -25 ~ +75°C
The I-7017 and I-7017F are analog input modules that provide either 8 differential input channels, or 6 differential input channels and 2 singleended input channels selectable via a jumper. The input type includes both voltage and current, and all channels are available for the same input range. An optional external 125 Ω resistor is required for current input. The modules also feature 3000 VDC intra-module isolation as well as +/-120 VDC overvoltage protection. The sampling rate of the I-7017F is adjustable, meaning that either fast mode or normal mode can be selected. The M-7017 supports both the Modbus RTU and DCON protocols, which can be configured via software, and provides 8 differential analog input channels. Other hardware specifications are the same as the I-7017.
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
Models
I-7017
I-7017F
M-7017
Analog Input
Channels
8
Wiring
6-channel Differential and 2-channel Single-ended, or 8-channel Differential.
8-channel Differential.
Input Range
+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA 0 ~ 20 mA, 4 ~ 20 mA
(requires optional external 125 Ω resistor)
Resolution
16-bit
Accuracy
Normal Mode
0.1%
Fast Mode
-
0.5 %
-
Sampling Rate
Normal Mode
10 Hz
Fast Mode
-
60 Hz
-
Input Impedance
20 MΩ
Common Voltage Protection
+/-15 VDC
Individual Channel Configuration
-
Overvoltage Protection
+/-120 VDC
Models
I-7017
I-7017F
M-7017
Communication
Interface
RS-485
Format
(N, 8, 1)
(N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
Baud Rate
1200 ~ 115200 bps
Protocol
DCON
Modbus RTU, DCON
Dual Watchdog
Yes, Module (1.6 Seconds), Communication (Programmable)
LED Indicator/Display
System LED Indicator
Yes, 1 LED as Power/Communication Indicator
I/O LED Indicator
-
7-Segment LED Display
-
Isolation
Intra-Module Isolation,
Field-to-Logic
3000 VDC
EMS Protection
ESD (IEC 61000-4-2)
+/- 2 kV Contact for each Terminal
+/- 4 kV Contact for each Terminal
RS (IEC 61000-4-3)
+/- 4 kV for Power
Power
Reverse Polarity Protection
Yes
Input Range
10 ~ 30 VDC
Consumption
1.3 W
Mechanical
Dimensions (W x L x H)
72 mm x 123 mm x 35 mm
Installation
DIN-Rail or Wall Mounting
Environment
Operating Temperature
-25 ~ +75°C
Storage Temperature
-40 ~ +85°C
Humidity
10 ~ 95% RH, Non-condensing
