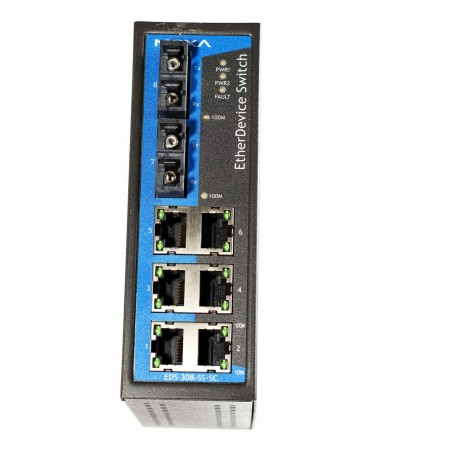

Moxa EDS-308-SS-SC industrial ethernet switch 6 10/100BaseT(X) ports 2 100BaseFX

EDS-308-SS-SC

EDS-308 Series

Unmanaged Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors, 0 to 60°C operating temperature.

Tested, in good condition.

Input/Output Interface

• Alarm Contact Channels
  • 1 relay output with current carrying capacity of 1 A @ 24 VDC

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector)
  • 6
    Auto negotiation speed
    Full/Half duplex mode
    Auto MDI/MDI-X connection
• 100BaseFX Ports (single-mode SC connector)
  • 2
• Standards
  • IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.3x for flow control
• Optical Fiber

DIP Switch Configuration

• Ethernet Interface
  • Port break alarm

Switch Properties

• MAC Table Size
  • 2 kbits
• Packet Buffer Size
  • 768 K
• Processing Type
  • Store and Forward

Power Parameters

• Input Current
  • 0.15 A @ 24 VDC
• Connection
  • 1 removable 6-contact terminal block(s) (not included)
• Operating Voltage
  • 9.6 to 60 VDC
• Input Voltage
  • Redundant dual inputs, 12/24/48 VDC
• Reverse Polarity Protection
  • Supported
• Overload Current Protection
  • Supported

Physical Characteristics

• Housing
  • Metal
• IP Rating
  • IP30
• Dimensions
  • 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
• Weight
  • 790 g (1.75 lb)
• Installation
  • DIN-rail mounting (with optional kit), Wall mounting (with optional kit)

Environmental Limits

• Operating Temperature
  • -10 to 60°C (14 to 140°F)
• Storage Temperature (package included)
  • -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity
  • 5 to 95% (non-condensing)

Standards and Certifications

• Hazardous Locations
  • ATEX, Class I Division 2
• EMI
  • CISPR 32, FCC Part 15B Class A
• EMC
  • EN 55032/24
• Vibration
  • IEC 60068-2-6
• EMS
  • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF
• Safety
  • UL 508, UL 60950-1, CSA C22.2 No. 60950-1
• Shock
  • IEC 60068-2-27
• Freefall
  • IEC 60068-2-32

MTBF

• Time
  • 255,528 hrs
• Standards
  • MIL-HDBK-217F
