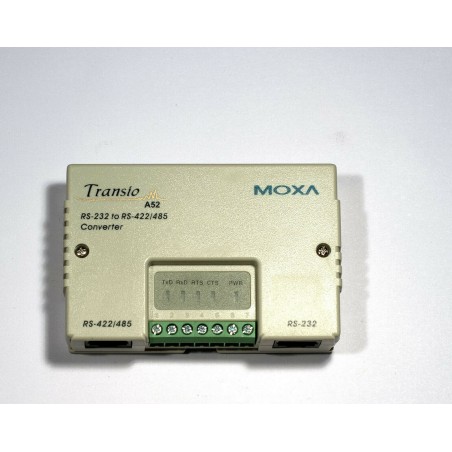

MOXA Transio A52 Entry-Level RS-232 to RS-422/485 Converter
5,00 $
264499633599
На всё б/у оборудование предоставляется ограниченная шестимесячная гарантия. Перед оправкой всё оборудование тщательно тестируется и упаковывается в жесткие коробки и пазырчатую плёнку.
Для поставки по России и в пределах таможенного союза используются службы СДЭК, ЕМС, Желдорэкспедиция, Деловые Линии и ПЭК. При необходимости Вы можете отправить запрос на доставку другой транспортной компанией.
Возврат товаров принимается в течении 15 дней после получения.
The Transio A52 is a rugged serial converter designed by Moxa for industrial environments. Its primary job is to bridge the gap between standard PC serial ports (RS-232) and industrial field devices (RS-422 or RS-485).
Technical Overview:
- Bi-Directional Conversion: Converts RS-232 signals to RS-422 (4-wire) or RS-485 (2-wire/4-wire).
- Distance Extension: Extends the transmission range from the 15-meter limit of RS-232 up to 1.2 km (4000 ft).
- Network Capacity: In RS-485 mode, it supports multidrop configurations, allowing one serial port to control up to 32 devices.
Key Technologies
- ADDC™ (Automatic Data Direction Control): This is a hardware-level feature that automatically manages the "handshaking" required for RS-485. You don't need to write extra software code to handle the timing of data transmission.
- Isolation & Protection: It features built-in Transient Voltage Suppressor (TVS) protection to prevent damage from electrical surges on the RS-422/485 lines.
Hardware Specifications
- Input Voltage: 9 to 30 VDC.
- Indicators: Top-panel LEDs for Power, TxD (Transmit), RxD (Receive), RTS, and CTS.
- Connector Options:
- RS-232 side: DB9 female or DB25 female.
- RS-422/485 side: Terminal block or 10-pin RJ45.
- Mounting: Compact plastic housing (IP30) suitable for wall or DIN-rail mounting.
Comparison Table: A52 Models
| Model
| RS-232 Connector | RS-422/485 Connector |
|---|---|---|
| A52-DB9F | DB9 Female | Terminal Block |
| A52-DB25F | DB25 Female | Terminal Block |
| A52-RJ45 | DB9 Female |
| 10-pin RJ45 |
3 шт.
Характеристики
- Brand
- Moxa
- MPN
- A52
- Model
- Transio
