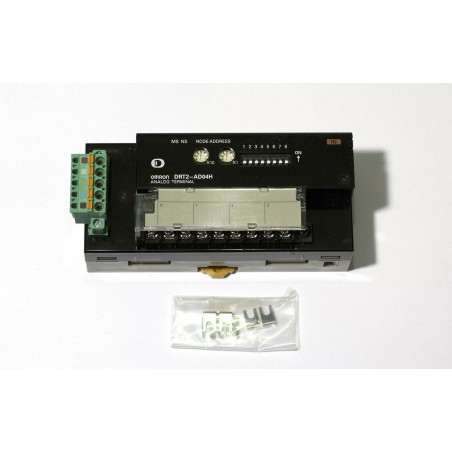

Omron DRT2-AD04H analog input 0..10V, 0..20mA, 4..20mA

Equipped with the standard Smart Slave functions that provide powerful preventative maintenance and troubleshooting capabilities.

Sampling data can be analyzed internally to provide a low-cost scheduler function.

Equipped with functions such as the scaling function, peak/bottom hold; top/valley hold; comparator function, cumulative counter, and derivative calculation function.

Two I/O points can be allocated to any two of the following values: analog input, peak/bottom, top, valley, or rate-of-change. Values without an allocated I/O point can be read with message communications.





General Specifications

Model DRT2-AD04 DRT2-AD04H DRT2-DA02 Communications power supply voltage 11 to 25 VDC (Supplied from the communications connector) Current consumption 90 mA max. at 24 VDC 70 mA max. at 24 VDC 120 mA max. at 24 VDC Noise immunity Conforms to IEC61000-4-4, 2 kV (power line) Vibration resistance 10 to 150 Hz, 0.7-mm double amplitude Shock resistance 150 m/s2 Dielectric strength 500 VAC for 1 min between the communications circuit and analog circuit (1 mA sensing
current) Ambient operating temperature -10°C to 55°C (with no icing or condensation) Ambient operating humidity 25% to 85% Ambient operating atmosphere No corrosive gases Ambient storage temperature -20°C to 65°C Mounting method DIN 35 mm-track mounting Mounting strength 50 N
10 N (in the DIN Track direction) Screw tightening torque M3 (power, I/O terminal): 0.5 Nm Weight 170 g max. 160 g max. 150 g max.

Input Specifications

Model DRT2-AD04 DRT2-AD04H Specifications Voltage input Current input Voltage input Current input Input points 4 points (inputs 0 to 3) Input type 0 to 5 V
1 to 5 V
0 to 10 V
-10 to +10 V 0 to 20 mA
4 to 20 mA 0 to 5 V
1 to 5 V
0 to 10 V 0 to 20 mA
4 to 20 mA Input range setting method Set using DIP switches: Shared by inputs 0 and 1, shared by inputs 2 and 3
Set using the Configurator: Possible to set inputs 0 to 3 independently Maximum signal input ±15 V ±30 mA ±15 V ±30 mA Input impedance 1 M Ω min. Approx. 250 Ω 1 M Ω min. Approx. 250 Ω Resolution 1/6,000 (FS) 1/30,000 FS (full scale) Overall
accuracy 25°C ±0.3% FS ±0.4% FS ±0.3% FS ±0.4% FS -10°C to 55°C ±0.6% FS ±0.8% FS ±0.6% FS ±0.8% FS Conversion time 4 ms max. for 4 inputs
Note: When calculation functions are not used and the
DeviceNet communications cycle is 4 ms. 250 ms max. for 4 inputs Converted data Input ranges other than -10 to 10 V:
Full scale is 0000 to 1770 hexadecimal (0 to 6,000)
-10 to 10 V input range:
Full scale is F448 to 0BB8 hexadecimal (-3,000 to 3,000)
A/D conversion range: ±5% FS Full scale is 0000 to 7530 hexadecimal
A/D conversion range: ±5% FS Insulation method Photocoupler isolation between inputs and communications
lines (There is no isolation between input signals) Photocoupler isolation (between inputs and
communications lines and between
temperature input signals) I/O connections Terminal block Accessories Four shorting bars for use with current inputs.

































Tested, in good condition.

Typical delivery time:

  Economy shipping (Russian Post) Standard Shipping (EMS Express Post) Europe 14-30 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days United States 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Canada 14-30 days, in rare cases up to 60 days 7-30 days, in rare cases up to 60 days Asia, India, Africa 14-40 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days Australia and Oceania 14-40 days, in rare cases up to 60 days 10-25 days, in rare cases up to 60 days South and Central America 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Other countries 20-60 days, in rare cases up to 80 days 10-30 days, in rare cases up to 70 days
