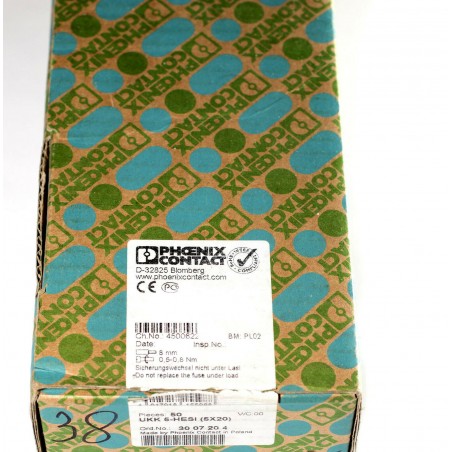

Phoenix Contact fuse modular terminal block UKK 5-HESI (5X20) 3007204 1pcs

Phoenix Contact fuse modular terminal block UKK 5-HESI (5x20) (Part No. 3007204).

Basic Information

• Type: Fuse modular terminal block

• Manufacturer: Phoenix Contact

• Part Number: 3007204

• Connection Method: Screw connection

• Fuse type: G fuse cartridge 5 x 20 mm

Ratings

• Cross section: 4 mm² (nominal)

• Rated voltage: 500 V

• Rated current: 6.3 A (depending on the fuse used)

• Maximum power loss: 1.6 W per pole

Wire Connection Data

• Solid wire: 0.2 mm² ... 6 mm² (AWG 24 ... 10)

• Stranded wire: 0.2 mm² ... 4 mm² (AWG 24 ... 12)

• Stranded with ferrule: 0.25 mm² ... 4 mm²

• Tightening torque: 0.5 Nm ... 0.6 Nm

• Strip length: 8 mm

Dimensions

• Width: 8.2 mm

• Height: 51.5 mm (NS 35/7.5 rail)

• Depth: 58 mm (NS 35/7.5 rail)

Mechanical & Environmental

• Mounting type: NS 35/7.5 or NS 32 DIN rail

• Material (insulation): Polyamide (PA), UL 94 V-0 flammability rating

• Ambient temperature (operation): -60°C ... 85°C

• Number of connections: 2

• Number of levels: 1

• Fuse plug dimensions: 41 mm height, 9.5 mm depth

Key Features

• Modular design consisting of a base terminal block and a separate fuse plug.

• The fuse plug can be easily removed for fuse replacement without tools.

• Equipped with an indicating window to check if the fuse has blown.

• Compatible with standard 5 x 20 mm cartridge fuses.

• Built with a proven screw connection system.

Accessories (part numbers)

• Fuse plug (empty): UKK 5-HESI (3007204)

• End cover: D-UKK 4 (3007316)

• Partition plate: ATP-UKK (3007345)

• Marker strip: ZB 6

• End clamp: CLIPFIX 35 (3022218)
