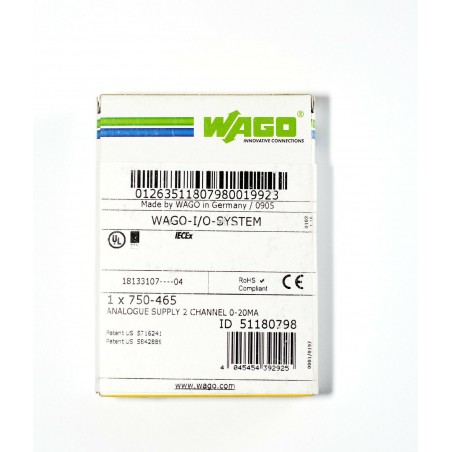

NEW Wago 750-465 2-channel analog input  0 … 20 mA  Single-ended
search
  • NEW Wago 750-465 2-channel analog input  0 … 20 mA  Single-ended

NEW Wago 750-465 2-channel analog input 0 … 20 mA Single-ended

230,00 $
253364401562
Количество
Последние товары на складе



На всё б/у оборудование предоставляется ограниченная шестимесячная гарантия. Перед оправкой всё оборудование тщательно тестируется и упаковывается в жесткие коробки и пазырчатую плёнку.



Для поставки по России и в пределах таможенного союза используются службы СДЭК, ЕМС, Желдорэкспедиция, Деловые Линии и ПЭК. При необходимости Вы можете отправить запрос на доставку другой транспортной компанией.



Возврат товаров принимается в течении 15 дней после получения.

Description 2-channel analog input; 0 … 20 mA; Single-ended  Remarks Item description:

The analog input module powers the transducers, receives transmitted analog signals, and with electrical isolation, transmits the signals to the fieldbus.

The 24V supply for the field is derived from the module's power jumper contacts.

The shield (screen) is directly connected to the DIN rail.

This input module can supply the voltage for 2-wire transducers.


    Item properties

Miscellaneous

Name Value Unit Packaging type  BOX    Number of analog inputs  2    Total number of channels (module)  2    Type of signal  Current    Type of signal current  DC 0 … 20 mA    Sensor connection  2 x (2-conductor, 3-conductor)    Input voltage (max.)  10V    Signal characteristic  Single-ended    Resolution [bit] [Bit]  12  Bit  Eingangswiderstand max. [Ω]  220  Ω  Bit width  2 x 16-bit data; 2 x 8-bit control/status (optional)    Conversion time (typ.) [ms]  2  ms  Mess-/Ausgabefehler, Bezugstemperatur [°C]  25  °C  Mess-/Ausgabefehler, Abweichung [% of the full scale value]  ±0.2  % of the full scale  Temperaturkoeffizient [%/K vom größten Messbereich]  ±0.01  %/K vom größten Mess  System supply voltage  DC 5 V; via data contacts    Current consumption, system supply [mA]  75  mA  Field supply voltage  DC 24 V; via power jumper contacts    Isolation  500 V system/supply    Number of incoming power jumper contacts  2    Number of outgoing power jumper contacts  2    Number of connections: Inputs/outputs  8    Connection technology: inputs/outputs  CAGE CLAMP®    Connection type (1)  Ein-/Ausgänge    Solid conductor  0.08 … 2.5 mm² / 28 … 14 AWG    Fine-stranded conductor  0.08 … 2.5 mm² / 28 … 14 AWG    Strip length  8 … 9 mm / 0.31 … 0.35 Inch    Width  12 mm / 0.472 Inch    Height  69.8 mm / 2.748 Inch    Height from upper-edge of DIN-35 rail  62.6 mm / 2.465 Inch    Depth  100 mm / 3.937 Inch    Type of mounting  Carrier rail 35 x 15    Color  light gray    Weight [g]  36.215  g  Conformity marking  CE    Ambient temperature (operation)  0 … 55 °C    Ambient temperature (storage)  -25 … 85 °C    Degree of protection  IP20    Relative air humidity (no condensation) [%]  95  %  Vibration resistance  acc. to IEC 60068-2-6    Shock resistance  acc. to IEC 60068-2-27    EMC immunity to interference  acc. to EN 61000-6-2    EMC emission of interference  acc. to EN 61000-6-4    Zulässige Schadstoffkonzentration H2S bei einer r  10  ppm  Zulässige Schadstoffkonzentration SO2 bei einer r  25  ppm  Product Family  750/753 Series I/O-System    Main product function  Analog input    Product type  Analog modules

New, in factory sealed box.


Typical delivery time:

  Economy shipping (Russian Post) Standard Shipping (EMS Express Post) Europe 14-30 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days United States 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Canada 14-30 days, in rare cases up to 60 days 7-30 days, in rare cases up to 60 days Asia, India, Africa 14-40 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days Australia and Oceania 14-40 days, in rare cases up to 60 days 10-25 days, in rare cases up to 60 days South and Central America 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Other countries 20-60 days, in rare cases up to 80 days 10-30 days, in rare cases up to 70 days
2 шт.

Характеристики

Brand
Wago
MPN
750-465
