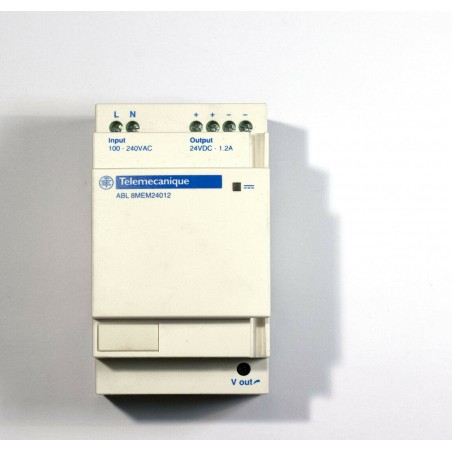

Schneider Electric regulated power supply 100..240 VAC - 24V 1.2A ABL8MEM24012

Characteristics Main range of product Phaseo product or component type Power supply power supply type Regulated switch mode input voltage 100...240 V AC phase to phase, terminal(s): L1-L2
100...240 V AC single phase, terminal(s): N-L1
120...250 V DC output voltage 24 V DC rated power in W 30 W input protection type Integrated fuse (not interchangeable) power supply output current 1.2 A output protection type Against short-circuits ambient air temperature for operation -25...55 °C without
55...70 °C with Complementary input voltage limits 85...264 V network frequency 47...63 Hz inrush current 0.5 efficiency > 82 % output voltage limits 22.2...28.8 V adjustable power dissipation in W 6.6 W current consumption 0.4 A at 240 V
0.65 A at 100 V line and load regulation +/- 3 % residual ripple 250 mV holding time >= 10 ms at 100 V
>= 150 ms at 230 V connections - terminals Screw type terminals for input connection, connection capacity: 2 x 0.14...2 x 2.5 mm² AWG 26...AWG 14
Screw type terminals for output connection, connection capacity: 4 x 0.14...4 x 2.5 mm² AWG 26...AWG 14 marking CE mounting support 35 x 15 mm symmetrical DIN rail
35 x 7.5 mm symmetrical DIN rail
Panel 2 screws, diameter : 4 mm operating position Vertical operating altitude 2000 m output coupling Parallel
Series name of test Harmonic current emission conforming to EN/IEC 61000-3-2
Conducted emissions on the power line conforming to EN 55022 Class B
Electrostatic discharges conforming to EN/IEC 61000-4-2
Emission conforming to EN 50081-1
Induced electromagnetic field conforming to EN/IEC 61000-4-6
Primary outage conforming to IEC 61000-4-11
Radiated electromagnetic field conforming to EN/IEC 61000-4-3
Radiated emissions conforming to EN 55022 Class B
Rapid transient conforming to IEC 61000-4-4
Surge conforming to EN/IEC 61000-4-5 status LED 1 LED green for output voltage depth 59 mm height 100 mm width 54 mm product weight 0.195 kg Environment product certifications TUV 60950-1
RCM
EAC
KC standards UL 508
CSA C22.2 No 60950-1 environmental characteristic EMC conforming to EN 55022 Class B
EMC conforming to EN 61000-6-3
EMC conforming to EN/IEC 61000-6-2
EMC conforming to EN/IEC 61204-3
Safety conforming to EN/IEC 60950-1
Safety conforming to SELV IP degree of protection IP20 conforming to EN/IEC 60529 ambient air temperature for storage -40...70 °C relative humidity 0...90 % during operation
0...95 % in storage overvoltage category Class II conforming to VDE 0106-1 dielectric strength Between input and output Tested, in good condition.
