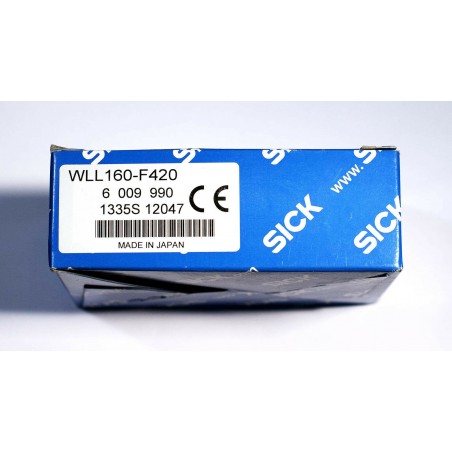

NEW Sick WLL160-F420 OPTIC ELECTRONIC Proximity PHOTOSWITCH, FIBRE, PNP

The WLL160-F420 is a Proximity switch with fibre optic cable, red light. Sensitivity setting with potentiometer, scaled. Large selection of LL3 fibre-optic cables switch-off delay 0 to 100ms. Contamination control output and test input for equipment and system testing. ABS housing. PNP open collector output. 4-pin M8 connection.

• Features Dimensions (W x H x D) 12 mm x 59 mm Housing design (light emission) Rectangular Sensing range max. 0 mm ... 2,000 mm 1) Sensing range 0 mm ... 400 mm 1) Type of light Visible red light Light source LED Wave length 660 nm
  • 1) Object with 90 % reflectance (referred to standard white, DIN 5033)

• Mechanics/electronics Supply voltage 10 V DC ... 30 V DC Ripple ± 10 % Power consumption ≤ 30 mA 1) Output type PNP Switching mode Light/dark switching Response time ≤ 0.35 ms 2) Connection type Connector M8, 4-pin Housing material ABS
  plastic Optics material PMMA Enclosure rating IP 66 Ambient operating temperature –25 °C ... +55 °C Ambient storage temperature –40 °C ... +70 °C
