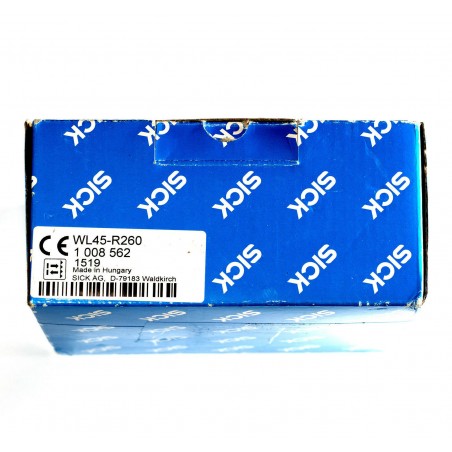

NEW Sick Photoelectric retro-reflective sensor, Dual lens WL45-R260 1008562

Sick Photoelectric retro-reflective sensor, Dual lens WL45-R260

New, in factory box.

Typical delivery time:

  Economy shipping (Russian Post) Standard Shipping (EMS Express Post) Europe 14-30 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days United States 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Canada 14-30 days, in rare cases up to 60 days 7-30 days, in rare cases up to 60 days Asia, India, Africa 14-40 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days Australia and Oceania 14-40 days, in rare cases up to 60 days 10-25 days, in rare cases up to 60 days South and Central America 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Other countries 20-60 days, in rare cases up to 80 days 10-30 days, in rare cases up to 70 days

Sensor/ detection principle Photoelectric retro-reflective sensor, Dual lens Dimensions (W x H x D) 60 mm x 105 mm x 105 mm Housing design (light emission) Rectangular Sensing range max. 1 m ... 55 m 1) Sensing range 1 m ... 45 m 1) Type of light Visible red light Light source LED 2) Light spot size (distance) Ø 230 mm (16 m) Adjustment Potentiometer Time type

On delay

Off delay

ON and OFF delay

Delay time Adjustable via time delay selector switch, 0.5 s, 12 s Special features Cable gland, for cross-section: 0,14 mm2 ... 2,5 mm2, max. 16 A

• 1) OP60-00.
• 2) Average service life: 100,000 h at TU = +25 °C.
• Supply voltage 20 V AC/DC ... 250 V AC/DC 1) Power consumption ≤ 3 VA Switching output Relay, electrically isolated 2) Output function Change-over contacts Switching mode Light/dark switching 2) Switching mode selector Selectable via time delay selector switch Switching current (switching voltage)

  4 A (240 V AC)

  4 A (24 V DC)

  Response time ≤ 20 ms Switching frequency 10 Hz 3) Connection type Terminal connection with PG13,5, 6-pin Circuit protection

  A 4)

  C 5)

  Protection class I Weight 800 g Polarisation filter ✔ Housing material Metal Enclosure rating IP67 Usage category AC-15, DC-13, according to EN 60947-1 Ambient operating temperature –25 °C ... +55 °C 6) Ambient storage temperature –40 °C ... +70 °C
