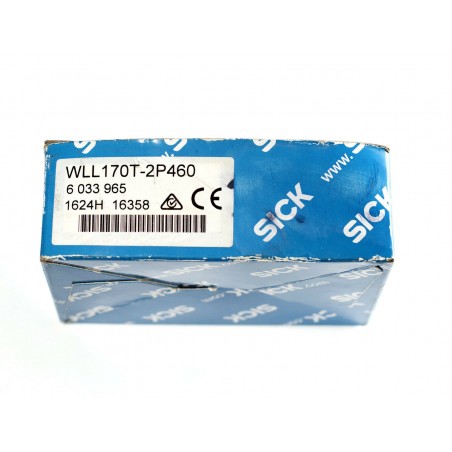

NEW Sick WLL170T-2P460 through-beam fiber-optic proximity sensor

•   Features Dimensions (W x H x D) 10.5 mm x 35.5 mm x 83.7 mm Housing design (light emission) Rectangular Sensing range max. 0 mm ... 1,500 mm, Through-beam system 1) Sensing range

  0 mm ... 60 mm, Proximity system 2) 3)

  0 m ... 300 mm, Through-beam system 4)

  Focus 5) Type of light Visible red light Light source LED 6) Angle of dispersion Approx. 65° 5) Wave length 660 nm Adjustment

  Single teach-in button

  Cable

  Time type Off delay Delay time Selectable by sliding switch, 40 ms Indication LED
  • 1) LL3-TB02 and tip adapter LL3-TA01.
  • 2) Objects to be sensed with 90% reflectivity (based on DIN 5033 white standard). Sensing range depends on fiber-optic cable.
  • 3) LL3-DM01.
  • 4) LL3-TB01.
  • 5) See LL3 fiber-optic data.
  • 6) Average service life: 100,000 h at TU = +25 °C.

• MECHANICS/ELECTRONICS Mechanics/electronics Supply voltage 10 V DC ... 30 V DC 1) Ripple 10 % 2) Power consumption 30 mA 3) Switching output PNP Number of switching outputs 1 Switching mode Light/dark switching Switching mode selector Selectable via light/dark selector Output current Imax. ≤ 100 mA Response time ≤ 50 µs 4) Switching frequency 10,000 Hz 5) Input Teach-in input Connection type Male connector M8, 4-pin Circuit protection

  A 6)

  B 7)

  C 8)

  D 9)

  Protection class III Weight 60 g Housing material Plastic, ABS Enclosure rating IP66 10) Items supplied BEF-WLL170 mounting bracket Ambient operating temperature –25 °C ... +55 °C Ambient storage temperature –40 °C ... +70 °C

New, in factory box.
