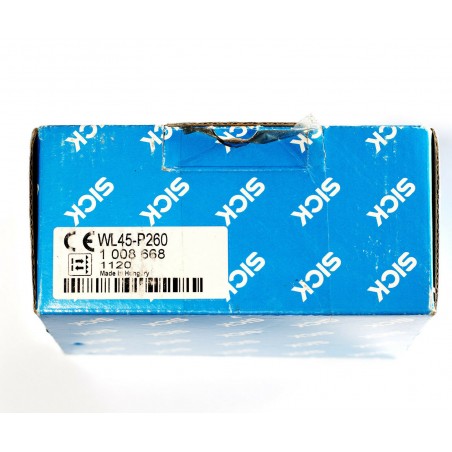

Sick Photoelectric retro-reflective sensor, Dual lens WL45-P260 1008668

Sick Photoelectric retro-reflective sensor, Dual lens WL45-P260 1008668

New, in the factory box, but may have traces of storage.

Typical delivery time:

  Economy shipping (Russian Post) Standard Shipping (EMS Express Post) Europe 14-30 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days United States 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Canada 14-30 days, in rare cases up to 60 days 7-30 days, in rare cases up to 60 days Asia, India, Africa 14-40 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days Australia and Oceania 14-40 days, in rare cases up to 60 days 10-25 days, in rare cases up to 60 days South and Central America 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Other countries 20-60 days, in rare cases up to 80 days 10-30 days, in rare cases up to 70 days

Sensor/ detection principle Photoelectric retro-reflective sensor, Dual lens Dimensions (W x H x D) 60 mm x 105 mm x 105 mm Housing design (light emission) Rectangular Sensing range max. 1 m ... 55 m 1) Sensing range 1 m ... 45 m 1) Type of light Visible red light Light source LED 2) Light spot size (distance) Ø 230 mm (16 m) Adjustment Potentiometer Time type

On delay

Off delay

ON and OFF delay

Delay time

Adjustable via time delay selector switch, 0.5 s, 12 s

0.015 s, 0.3 s

• 1) OP60-00.
• 2) Average service life: 100,000 h at TU = +25 °C.
• Supply voltage 10 V DC ... 60 V DC 1) Ripple ≤ 5 Vpp 2) Power consumption ≤ 50 mA 3) Switching output PNP Output function Complementary Switching mode Light/dark switching Output current Imax. 200 mA Response time ≤ 1.2 ms 4) Switching frequency 400 Hz 5) Connection type Terminal connection with PG13,5, 6-pin Circuit protection

  A 6)

  C 7)

  D 8)

  Protection class I 9) Weight 800 g Polarisation filter ✔ Alarm output 100 mA 10) Housing material Metal Enclosure rating IP67 Test input sender off TE to 0 V Ambient operating temperature –25 °C ... +55 °C 11) Ambient storage temperature –40 °C ... +70 °C

• 1) Limit values.
• 2) May not exceed or fall below Uv tolerances.
• 3) Without load.
• 4) Signal transit time with resistive load.
• 5) With light/dark ratio 1:1.
• 6) A = VS connections reverse-polarity protected.
• 7) C = interference suppression.
• 8) D = outputs overcurrent and short-circuit protected.
• 9) Reference voltage: 50 V DC.
• 10) Flashes at approx. 5 Hz, switch to VS.
• 11) Up to 140 °C with cooling plates (see accessories).
