NEW Sick IME18-05BPSZC0K inductive proximity sensor

Sick IME18-05BPSZC0K inductive proximity sensor.



• FEATURES Housing Cylindrical thread design Housing Short-body Thread size M18 1 Diameter Ø 18 mm Sensing range Sn 5 mm Safe sensing range Sa 4.05 mm Installation type Flush Switching frequency 1,000 Hz Connection type Male connector M12, 4-pin Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP67 1)
  • 1) According to EN 60529.

• MECHANICS/ELECTRONICS Supply voltage 10 V DC ... 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V 1) Current consumption ≤ 10 mA 2) Time delay before availability ≤ 100 ms Hysteresis 5 % ... 15 % Reproducibility ≤ 2 % 3) 4) Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms/10 Hz ... 55 Hz, 1 mm Ambient operating temperature –25 °C ... +75 °C Housing material Metal, Nickel-plated brass Sensing face material Plastic, Plastic Housing length 50 mm Thread length 33 mm Tightening torque, max. ≤ 40 Nm UL File No. NRKH.E181493

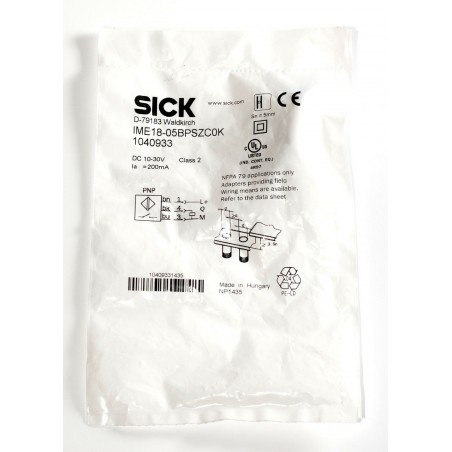

New, in factory sealed bag.
