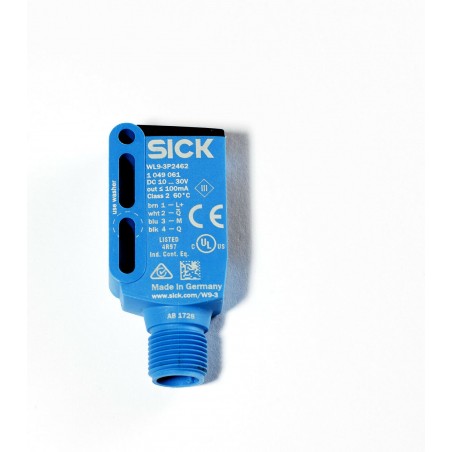

Sick Photoelectric retro-reflective sensor, autocollimation WL9-3P2462 1049061

• FEATURES Sensor/ detection principle Photoelectric retro-reflective sensor, autocollimation Dimensions (W x H x D) 12.2 mm x 52.2 mm x 23.6 mm Housing design (light emission) Rectangular Mounting hole M3 Sensing range max. 0 m ... 0.4 m 1) Sensing range 0 m ... 0.3 m 1) Type of light Visible red light Light source PinPoint LED 2) Light spot size (distance) Ø 2 mm (35 mm) Wave length 650 nm Adjustment Single teach-in button
  • 1) Reflector PL80A.
  • 2) Average service life: 100,000 h at TU = +25 °C.

• MECHANICS/ELECTRONICS Supply voltage 10 V DC ... 30 V DC 1) Ripple < 5 Vpp 2) Power consumption ≤ 30 mA 3) Switching output PNP 4) Output function Complementary Switching mode Light/dark switching 4) Output current Imax. ≤ 100 mA 5) Response time < 0.5 ms 6) Switching frequency 1,000 Hz 7) Connection type Male connector M12, 4-pin Circuit protection

  A 8)

  B 9)

  C 10)

  Protection class III Weight 13 g Polarisation filter ✔ Housing material Plastic, VISTAL® Optics material Plastic, PMMA Enclosure rating

  IP66

  IP67

  IP69K

  Special feature Focused optics Ambient operating temperature –40 °C ... +60 °C Ambient storage temperature –40 °C ... +75 °C UL File No. NRKH.E181493
  • 1) Limit values when operated in short-circuit protected network: max. 8 A.
  • 2) May not exceed or fall below Uv tolerances.
  • 3) Without load.
  • 4) Q = light switching.
  • 5) At and above Tu 50 °C, a max. load current of Imax. = 50 mA is permitted.
  • 6) Signal transit time with resistive load.
  • 7) With light/dark ratio 1:1.
  • 8) A = VS connections reverse-polarity protected.
  • 9) B = inputs and output reverse-polarity protected.
  • 10) C = interference suppression.
