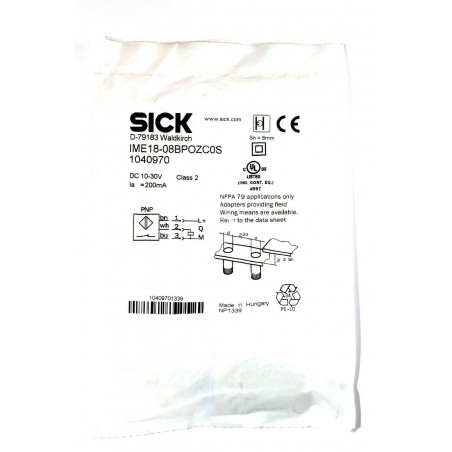

SICK Inductive proximity sensor M18 x 1 8 mm sensing range IME18-08BPOZC0S
search
  • SICK Inductive proximity sensor M18 x 1 8 mm sensing range IME18-08BPOZC0S
  • SICK Inductive proximity sensor M18 x 1 8 mm sensing range IME18-08BPOZC0S

SICK Inductive proximity sensor M18 x 1 8 mm sensing range IME18-08BPOZC0S

$19.00
264491063125
Quantity
Last items in stock



We provide 6-month warranty for all used products. Before shipping all products carefully tested and packed in hard box with bubble wrap. If you pay with PayPal you can use buyer protection program.



For shipping we use EMS express post (delivery within 5-20 days). By additional request we can use DHL, UPS or FEDex services. In this case price for shipping will be calculated individually.



We accept returns within 15 days after receiving goods.

SICK Inductive proximity sensor M18 x 1 8 mm sensing range IME18-08BPOZC0S





  • FEATURES Housing Cylindrical thread design Housing Standard Thread size M18 x 1 Diameter Ø 18 mm Sensing range Sn 8 mm Safe sensing range Sa 6.48 mm Installation type Flush Switching frequency 1,000 Hz Connection type Male connector M12, 4-pin Switching output PNP Output function NC Electrical wiring DC 3-wire Enclosure rating IP67 1)
    • 1) According to EN 60529.
  • MECHANICS/ELECTRONICS Supply voltage 10 V DC ... 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V 1) Current consumption 10 mA 2) Time delay before availability ≤ 100 ms Hysteresis 5 % ... 15 % Reproducibility ≤ 2 % 3) 4) Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms/10 Hz ... 55 Hz, 1 mm Ambient operating temperature –25 °C ... +75 °C Housing material Metal, Nickel-plated brass Sensing face material Plastic, PA 66 Housing length 69 mm Thread length 52 mm Tightening torque, max. ≤ 40 Nm Items supplied Mounting nut, brass, nickel-plated (2x)



Typical delivery time:

  Economy shipping (Russian Post) Standard Shipping (EMS Express Post) Europe 14-30 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days United States 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Canada 14-30 days, in rare cases up to 60 days 7-30 days, in rare cases up to 60 days Asia, India, Africa 14-40 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days Australia and Oceania 14-40 days, in rare cases up to 60 days 10-25 days, in rare cases up to 60 days South and Central America 20-40 days, in rare cases up to 70 days 14-30 days, in rare cases up to 60 days Other countries 20-60 days, in rare cases up to 80 days 10-30 days, in rare cases up to 70 days
2 Items

Data sheet

Brand
Sick
MPN
IME18-08BPOZC0S
Current Type
DC
Nominal Sensing Radius
8mm
Body Style
Barrel
