  • NEW Sick Photoelectric proximity sensor, energetic WT150-P132 6011042

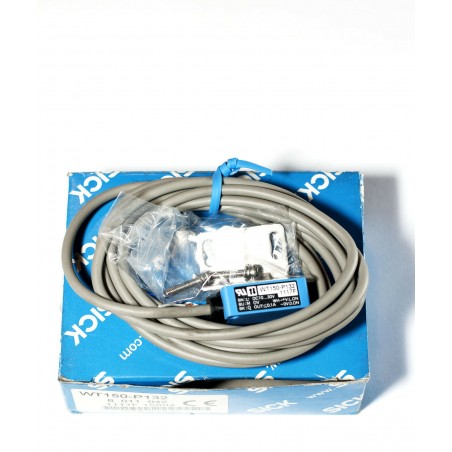

NEW Sick Photoelectric proximity sensor, energetic WT150-P132 6011042

$85.00
254478095184
Quantity
In Stock



We provide 6-month warranty for all used products. Before shipping all products carefully tested and packed in hard box with bubble wrap. If you pay with PayPal you can use buyer protection program.



For shipping we use EMS express post (delivery within 5-20 days). By additional request we can use DHL, UPS or FEDex services. In this case price for shipping will be calculated individually.



We accept returns within 15 days after receiving goods.

  • FEATURES Sensor/ detection principle Photoelectric proximity sensor, energetic Dimensions (W x H x D) 10 mm x 28 mm x 17.5 mm Housing design (light emission) Rectangular Sensing range max. 10 mm ... 250 mm 1) Sensing range 10 mm ... 200 mm Type of light Visible red light Light source LED 2) Angle of dispersion Approx. 6° Adjustment Potentiometer, 270°
    • 1) Object with 90 % reflectance (referred to standard white, DIN 5033).
    • 2) Average service life: 100,000 h at TU = +25 °C.
  • MECHANICS/ELECTRONICS Supply voltage 10 V DC ... 30 V DC 1) Ripple ± 10 % 2) Power consumption 20 3) Switching output PNP Switching mode Light/dark switching Switching mode selector Selectable via L/D control cable Output current Imax. ≤ 100 mA Response time ≤ 0.5 ms 4) Switching frequency 1,000 Hz 5) Connection type Cable, 4-wire, 2 m 6) Cable material PVC Conductor cross-section 0.18 mm² Circuit protection

    A 7)

    B 8)

    C 9)

    D 10)

    Protection class II Weight 44 g Housing material Plastic, ABS Optics material Plastic, PC Enclosure rating IP67 Items supplied BEF-W150-A mounting bracket Ambient operating temperature –25 °C ... +55 °C Ambient storage temperature –40 °C ... +75 °C UL File No. NRNT2.E128350 & NRNT8.E128350
    • 1) Limit values.
    • 2) May not exceed or fall below Uv tolerances.
    • 3) Without load.
    • 4) Signal transit time with resistive load.
    • 5) With light/dark ratio 1:1.
    • 6) Do not bend below 0 °C.
    • 7) A = VS connections reverse-polarity protected.
    • 8) B = inputs and output reverse-polarity protected.
    • 9) C = interference suppression.
    • 10) D = outputs overcurrent and short-circuit protected.
  • New, in factory box.

Typical delivery time:

  Economy shipping (Russian Post) Standard Shipping (EMS Express Post) Europe 14-30 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days United States 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Canada 14-30 days, in rare cases up to 60 days 7-30 days, in rare cases up to 60 days Asia, India, Africa 14-40 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days Australia and Oceania 14-40 days, in rare cases up to 60 days 10-25 days, in rare cases up to 60 days South and Central America 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Other countries 20-60 days, in rare cases up to 80 days 10-30 days, in rare cases up to 70 days
5 Items

Data sheet

Brand
Sick
MPN
WT150-P132
Body Type
Block
